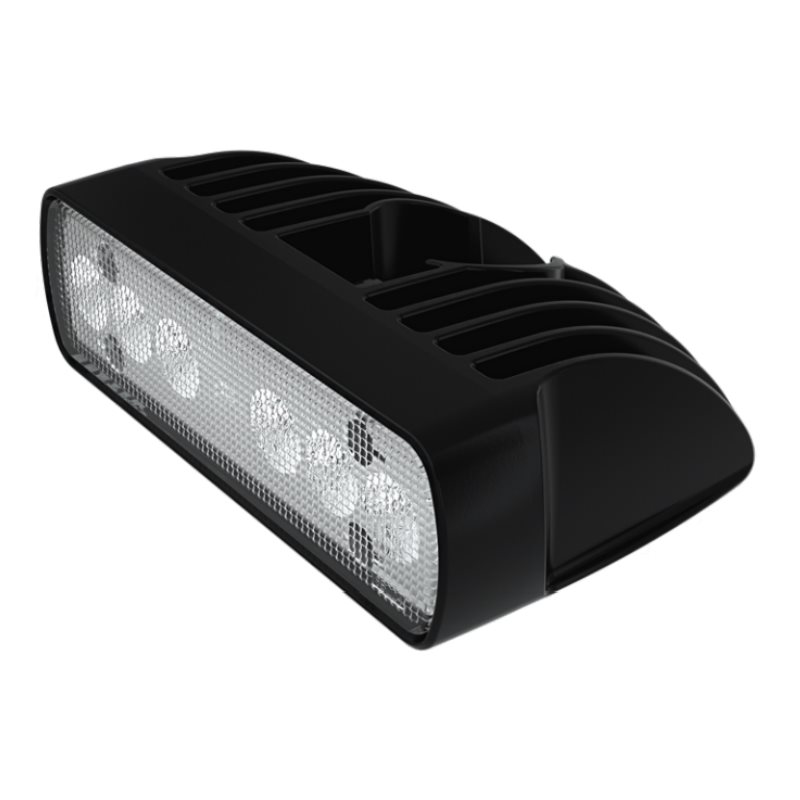

With NORDIC LIGHTS® Pictor 620 you’ll be sure to hit the bullseye. This LED work light is designed to be mounted on equipment booms or vehicle bodies for optimized and targeted illumination of a specific work area. Thanks to its compact and clever design, this lowprofile work light is unbeatable in durability.
The mechanical, thermal and corrosion resistance of Pictor 620 is excellent thanks to its Grilamid® lens and new strengthened aluminium housing. While the Pictor 620 is lightweight and small, it still delivers as many as 1800 operational lumens and a vibration strength capacity of 15.3 Grms.
There are two versions available, one with a light pattern optimized for mounting on the left, the right or beneath the vehicle body, and one designed for top mounting. Used in the construction, forestry and mining industries, it is particularly suitable for excavators, telehandlers and other equipment with a boom.
Key Features:
- Compact and low-profile, doesn't break easily
- Suitable for mounting in tight spaces
- Superior electromagnetic compatibility (CISPR 25 Class 5)
| Technical Data |
| Theoretical Lumens |
2 700 Lumens |
| Output: |
|
| Operational Lumens |
1 800 Lumens |
| Output: |
|
| Colour Temperature: |
5 000 K |
| Nominal Voltage DC: |
12 V, 24 V |
| Input Voltage DC: |
9 - 16 V, 18 - 32 V |
| Power Consumption: |
28 w |
| Nominal Current at: |
12 V = 2.0 A, 24 V = 1.0 A |
| Connector: |
Built-in Deutsch DT-2 (2-pin) |

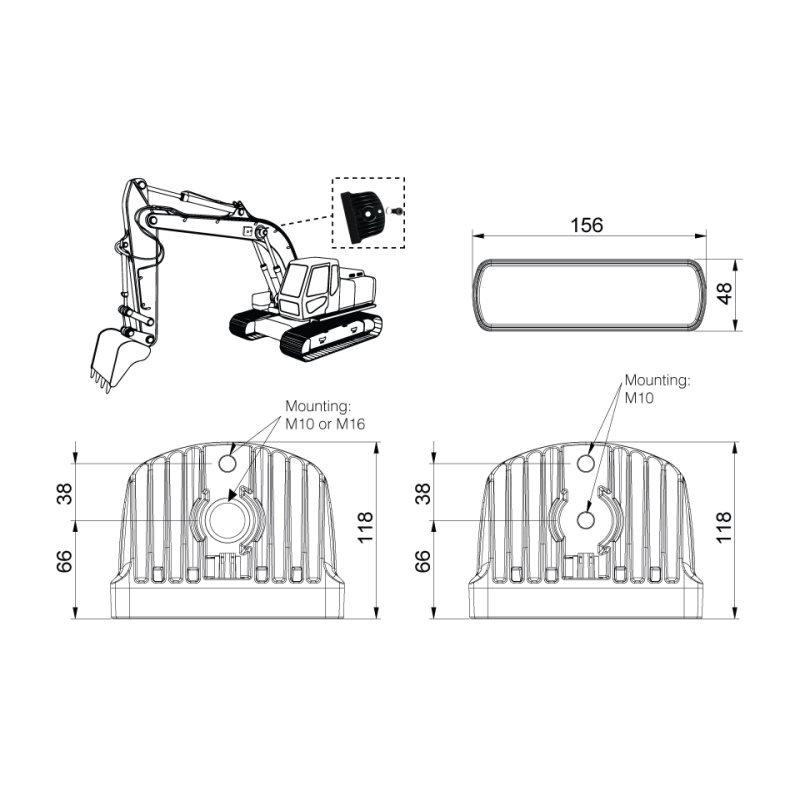

| Mount: |
M16 or M10 |
| Shock: |
60 G |
| Vibration: |
15.3 Grms 24 - 2000 Hz |
| Lens: |
Grilamid® (registered trademark |
| |
of EMS-GRIVORY) |
| Body/Housing: |
Aluminium |
| Weight: |
0.7 kg |
| IP Rating: |
IP68, IP6K9K |
| Salt Spray Test: |
ISO 9227 240H |
| EMC: |
CISPR 25 Class 5, ISO 13766, |
| |
ISO 14982, ISO 7637-2, ISO 13309, |
| |
ISO 11452-2, EN 61000-4-2, |
| |
ISO 14982, EN 12985 |
| Operating |
-40° C... +85° C |
| Temperatures: |
(Overheat protected) |
| Electronics: |
Isolated |

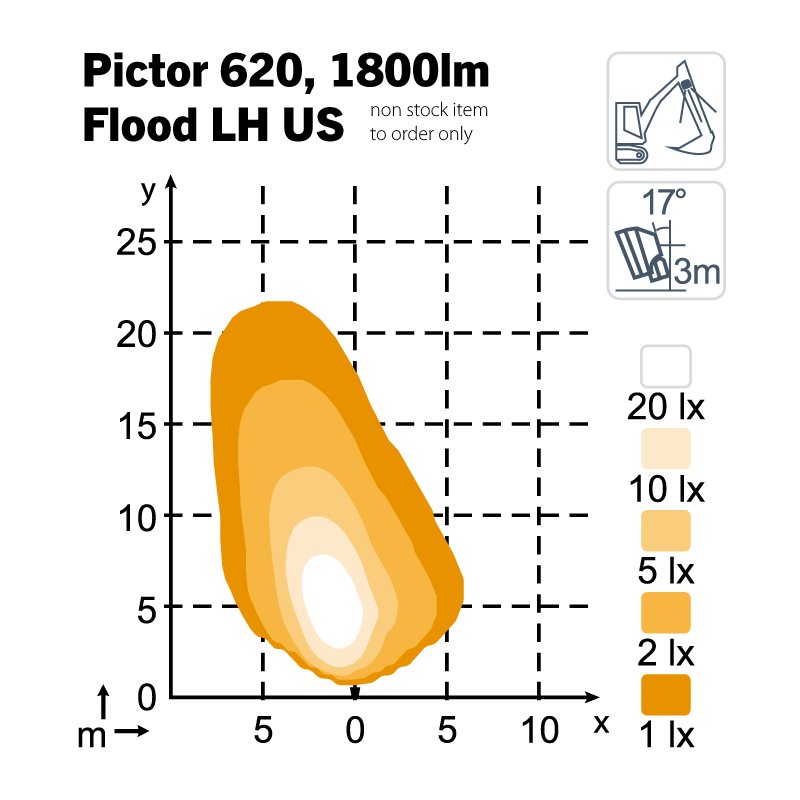

FLOOD LH US
Part No.: Non stock item - order only

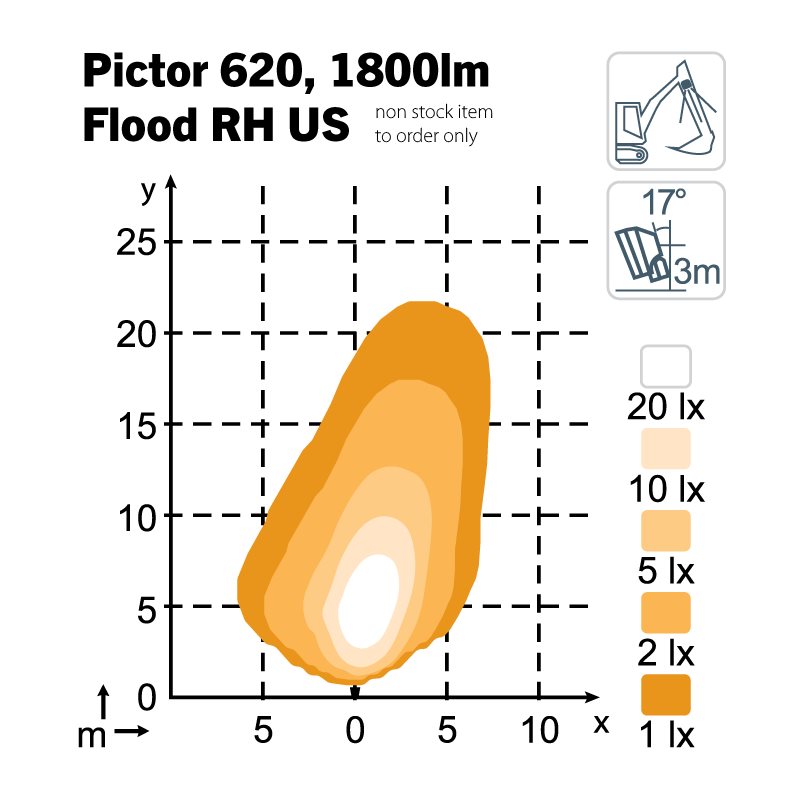

FLOOD RH US
Part No.: Non stock item - order only

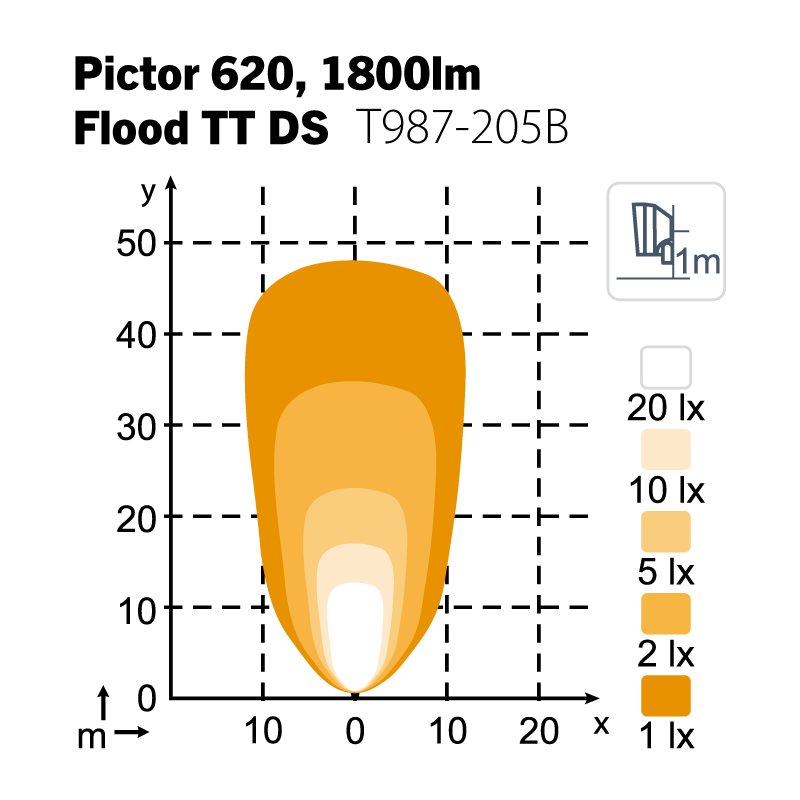

FLOOD TD DS
Part No.: T987-205B
FLOOD TD US
Part No.: T987-204B
