THE SCORPIUS XTR IS IN
A LEAGUE OF ITS OWN
A rugged, high-performance lighting solution that outshines the competition in durability, efficiency, and reliability — now with new 3500 and 4500 models replacing the 4401.
Trusted across demanding mining sectors.
Key Features
Engineered to withstand the harshest mining conditions — from intense vibrations to extreme heat and abrasive dust.
CLEVER: Coloured bezels for quick identification of installed light pattern.
DURABLE: A tempered glass lens that resists melting, and deformation, a housing with enhanced scratch resistance and a vibration-resistant bracket (QUAKE dampening).
AVAILABLE IN 24 V ONLY: reducing the potential risk of theft.
| SPECIFICATIONS |
| Beam Angle |
High Beam |
| Theoretical Lumens |
6 700 lm |
| Operational Lumens |
4 200 lm |
| Colour Temperature |
5 700 K |
| Nominal/Input Voltage DC |
24 V |
| Power Consumption |
40 w |
| Nominal Current |
1.6 A@24 V |
| Mount |
Single Bolt M10 |
| Connector |
Built-in Deutsch DT-2 (2-pin) |
| EMC |
CISPR 25 Class 5, EN12895, ISO 13766,
ISO 14982, ISO 7637-2 |
| Shock |
60 G |
| Vibration |
20 Grms 10-2 000 Hz, 4.65 Grms 12-2 000 Hz |
| Lens |
Glass |
| Body |
Aluminium |
| IP Rating |
IP68, IP6K9K |
| Weight |
1.5 kg |
| Salt Mist |
ISO 9227 240 h |
| Operating Temperature |
-40 °C... +85 °C (Overheat protected) |
| Warranty |
5 years |

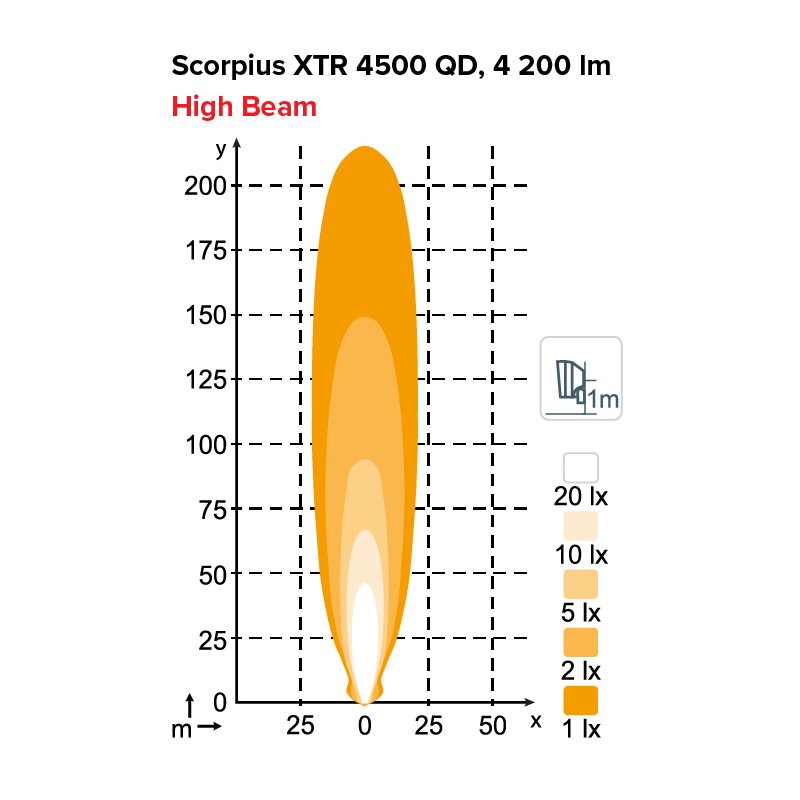

High Beam
Part No.: T184-9009T
