The Nordic Centaurus XTR is our masterpiece with a light output of 7200 lumens. This product is primarily used in the mining industry and is particularly useful for bucket-wheel excavators, draglines, highwall miners, hydraulics, surface miners, and wheel dozers. The Centaurus product family has a square form factor and utilizes our groundbreaking innovation, the QUAKE dampening system. Centaurus XTR withstands vibration up to 15.3 Grms at 24-2000Hz and 4.65 Grms at 12-2000Hz.
Key Features:
- QUAKE dampening system
- Operational lumens output: 7200lm
- For extremely harsh conditions
- Built-in Deutsch Plug
| Technical Data |
| Theoretical Lumens |
|
| Output: |
11 500 Lumens |
| Operational Lumens |
|
| Output: |
7200 Lumens |
| Colour Temperature: |
5700 K |
| Nominal Voltage DC: |
24 V |
| Input Voltage Range DC: |
18 - 32 V |
| Power Consumption: |
85 w |
| Nominal Current at 24 V: |
24 V = 3.5 A |
| Connector: |
Built-in Deutsch DT-2 (2-pin) |
| Mount: |
Single Bolt M10 |
| Shock: |
60 G |
| Vibration: |
15.3 Grms 24 - 2000 Hz |
| |
4.65 Grms 12 - 2000 Hz |
| Lens: |
PC |
| Body/Housing: |
Aluminium |
| Weight: |
2.5 kg |
| IP Rating: |
IP68, IP6K9K, SAE J1455 |
| Salt Spray Test: |
ISO 9227 240 H |
| EMC: |
CISPR 25 Class 3, ISO 13766, |
| |
ISO 14982, ISO 7637-2 |
| Operating Temperatures: |
-40 °C... +85 °C |
| |
(Overheat protected) |

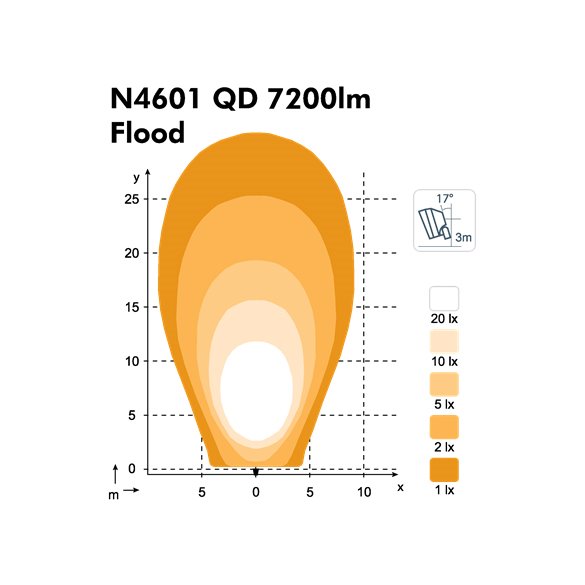

Flood Beam:
Part No.: T986-102B

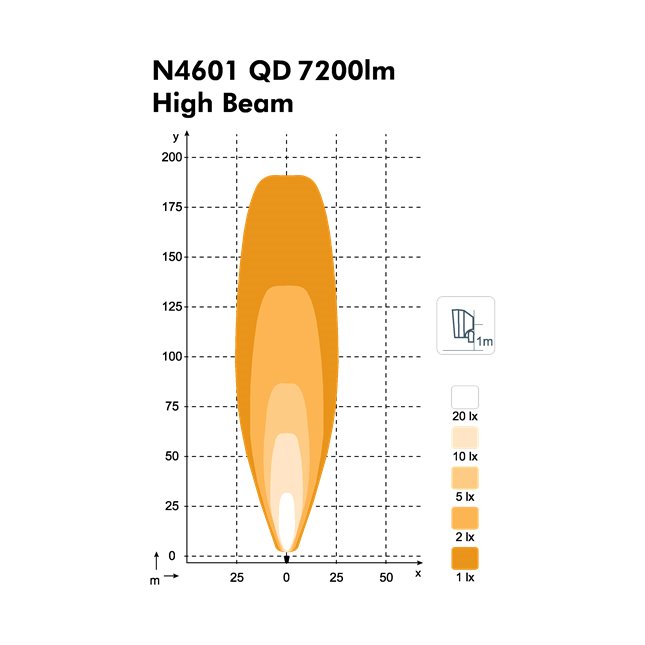

High Beam:
Part No.: T986-104B

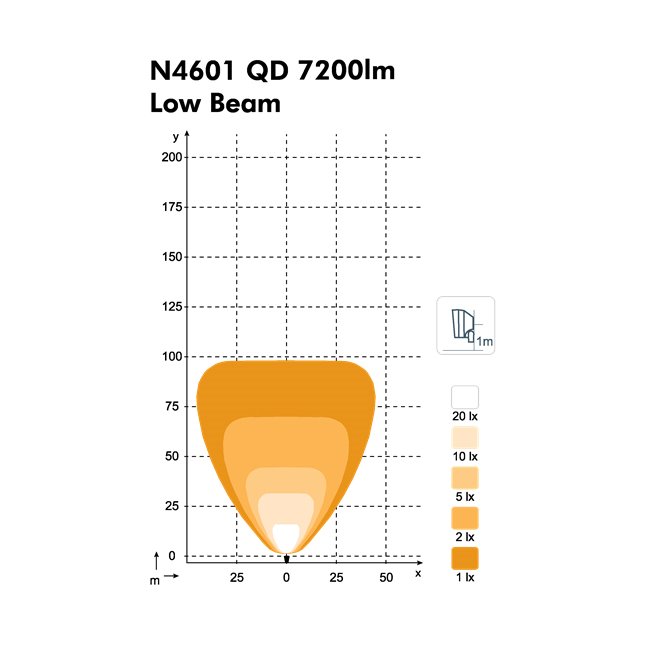

Low Beam:
Part No.: T986-103B

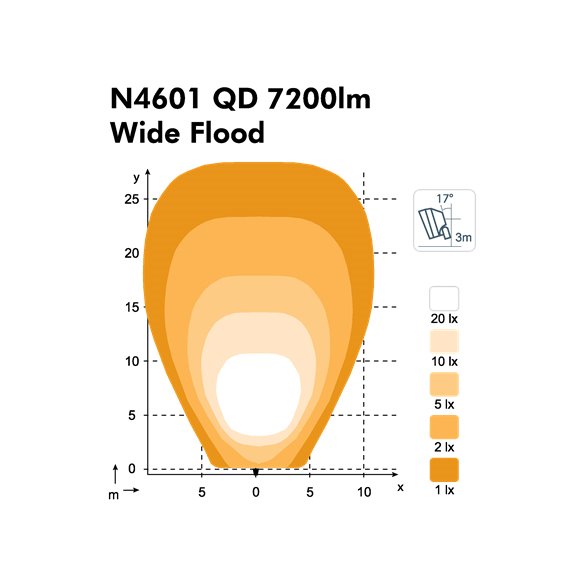

Wide Flood:
Part No.: T986-101B
