TE Connectivity Kissling Toggle Switch, Series 07

TE Connectivity Kissling Toggle Switch, Series 07

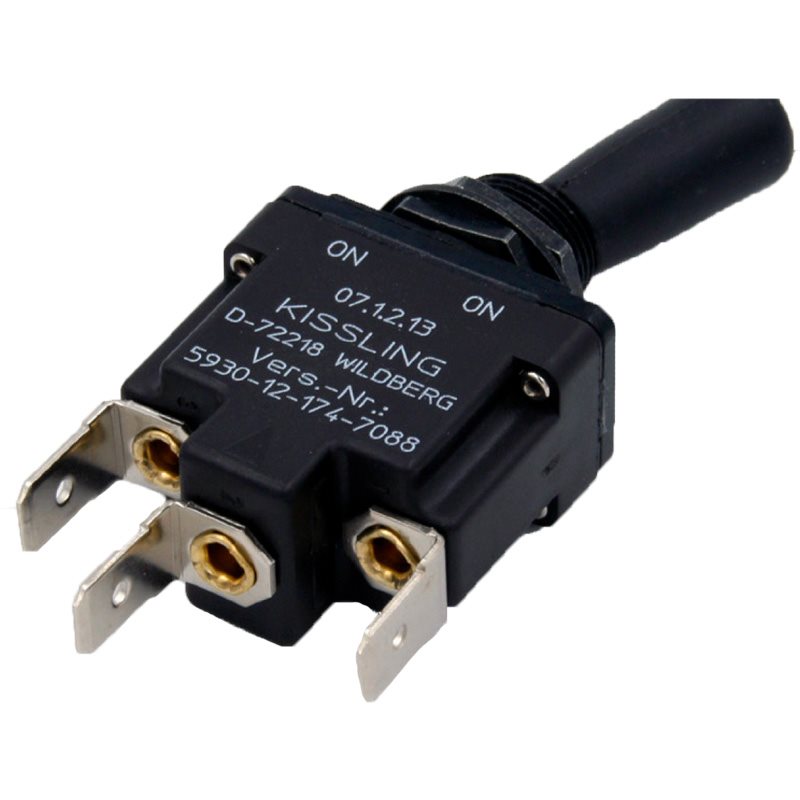

KISSLING SERIES 07 TOGGLE SWITCH

The KISSLING toggle switches from TE Connectivity’s product family have been developed under strict guidelines to meet international standards.

This series of toggle switches is mainly used as robust, industrial, and durable control switches in commercial vehicles. The housing of the Series 07 is made of thermoplastic and meets IP65/IP6K5 protection class standards.

All Kissling Series 07 Toggle Switches are pre-sealed. We offer additional sealing rings for improved mounting solutions and optional bellows for the handles. Our broad selection of toggles includes many options for switching configuration, termination type, load-carrying capabilities, and locking combinations.

TE Connectivity provides switches with and without switch guards to prevent accidental switching, as well as individual switches and complete switch assemblies with additional sealed housings for simplified vehicle assembly procedures.


APPLICATIONS

  • Truck
  • Medical Equipment
  • Bus
  • Ground Support Vehicles
  • Plant and Industrial Engineering
  • Construction and Agricultural Vehicles

FEATURES

  • High-quality silver alloy or gold-plated contacts
  • Sealing technology meets IP65/IP6K5 standards
  • 2- and 3-position switch actions
  • Variety of available switching styles
  • Locking options for individual needs

 SPECIFICATIONS
 Housing Material Thermoplast GF
Construction in Accordance With (IAW)  IEC 1 020
 Seal Connection IP65 IEC 60529/IP6K5 DIN 40050 part 9/IP6K5 ISO 20653
IP00 IEC 60529/IP00 DIN 40050 part 9/IP00 ISO 20653
 Current Carrying Parts Copper-zinc alloy
 Contact Material Silver-alloy or gold-plated contacts
 Temperature Range -35 °C to +60 °C
 Electrical Life (Nominal Load) 100 000 cycles
Nominal Voltage/Continuous Current 12 VDC, 20 A ohmic load
28 VDC, 20 A ohmic load
28 VDC, 15 A L/R = 5 msec inductive load
115 VAC, 15 A inductive load
 Min. Switching Capacity 12 VDC, 20 mA

Part No.: TBA
