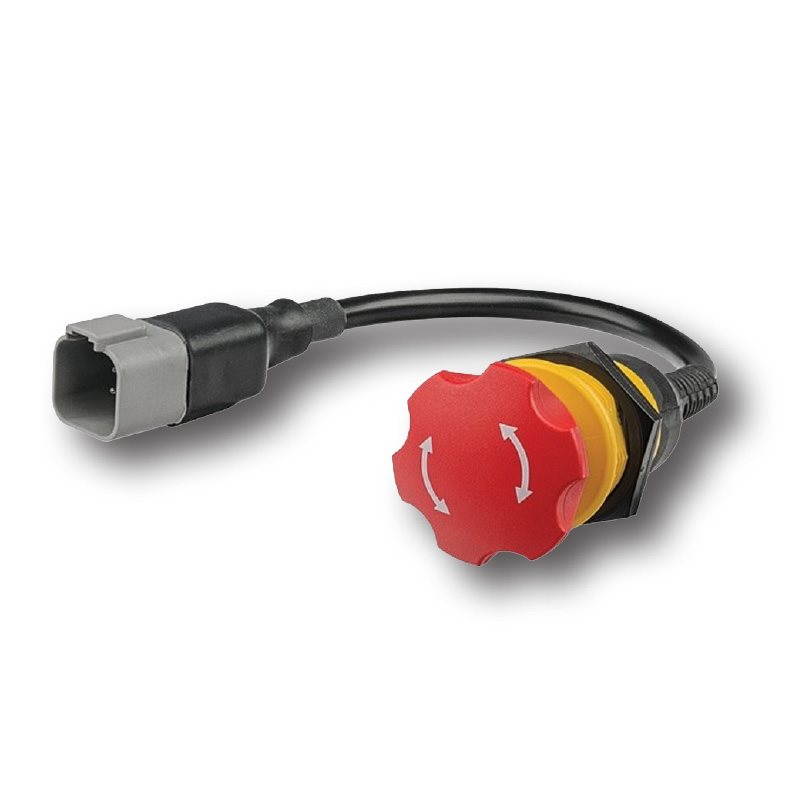

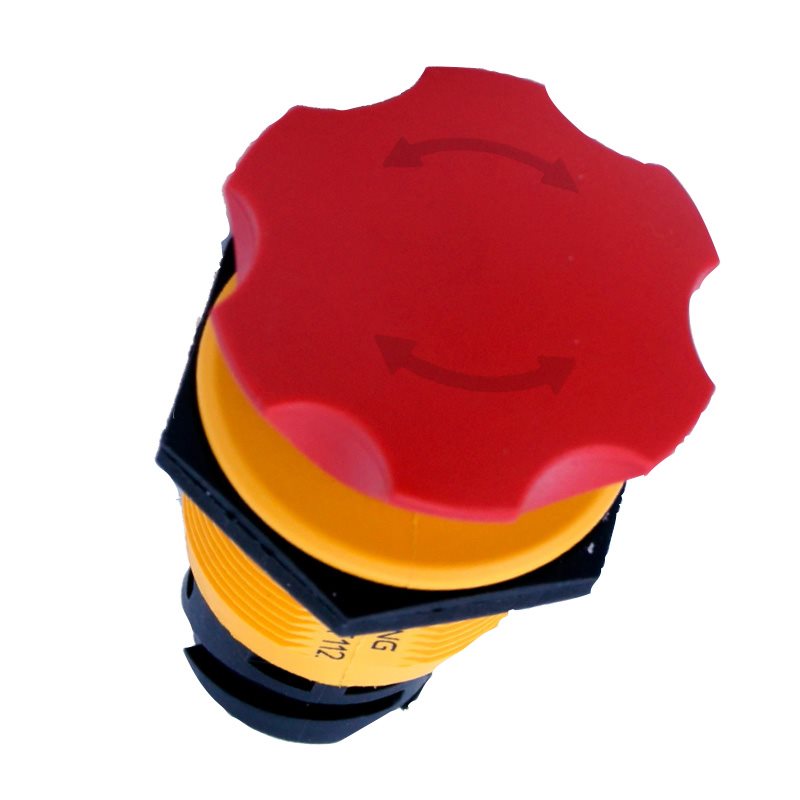

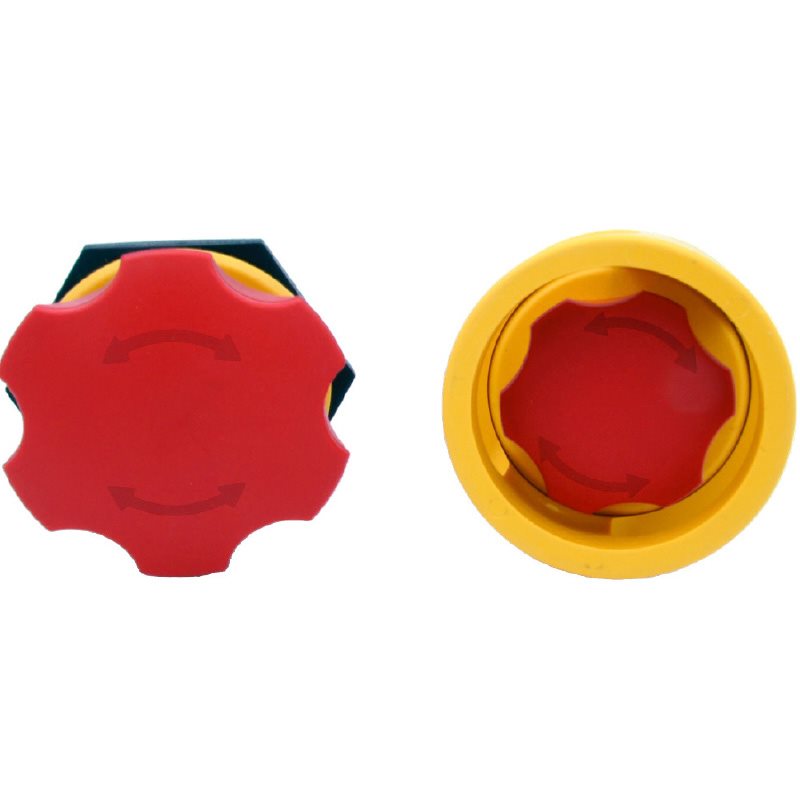

TE Connectivity Kissling E-Stop Series ES Switch

KISSLING E-STOP SERIES ES SWITCH

QUALITY SAFETY SWITCH

It doesn’t matter whether you call it an e-stop, emergency stop, emergency switch or e-stop switch, we have the right switch for your application. Our selection of sealed safety and emergency stop (e-stop) switches has been designed and manufactured to the highest quality standards. In addition to classic applications on emergency vehicles, work trucks, off-road equipment, and heavy machinery, the e-stop application area covers the complete e-mobility market including charging stations.

COMPACT, SEALED, AND RUGGEDISED

The ES series is a compact, sealed, and ruggedised switch with small dimensions and a high resistance to shock, vibration, dust, and moisture. These characteristics are important for safe and reliable switching. Thanks to our fully sealed switch, no additional protection such as a box or enclosure is required. It is a plug-and-play system that can be used in hazardous environments. Safety-related switching applications are no place to compromise on quality.


APPLICATIONS

  • Commercial Vehicles
  • Remote Control Panels
  • Construction and Agricultural Vehicles
  • E-Mobility Charging Station
  • Off-Road Vehicles
  • Lifting Vehicles
  • Hydraulic Systems

TECHNICAL DATA
 Protection  IEC 60529 IP67 and IP6K9K
 Temperature Range  -40 °C ~ +85 °C
 Material Terminals  Copper-Zinc
 Thread Size/Torque  M30 x 1.5 = max. 6 Nm

MECHANICAL DATA (CHANGE-OVER)
 Locking  EN 60947-5-5
 Positive Opening Operation  EN 60947-5-5
 Operating Force  20 - 50 N
 Torque Knob Max.  3 Nm
 Current Carrying Parts  Cu-alloy
 Contact Material  Ag-alloy
 Mechanical Life  40 000 cycles
 Frequency  Max. 100/min.

ELECTRICAL DATA
 Voltage Range  9-32 VDC
 Nominal Voltage  12 VDC/24 VDC
 Dielectric Withstanding Voltage  1 050 VAC up to 1 min.
 Contact Resistance  Max. 50 mΩ
 Insulation Resistance  > 100 mΩ at 500 VDC
 Continuous Current  10 mA - 10 A
 Current Max.  10.1 A
 Switching Capacity Min.  12 VDC, 10 mA
 Short-Circuit Protection  Automotive fast-acting fuse 10 A is recommended on the same circuit.

Part No.: TBA
