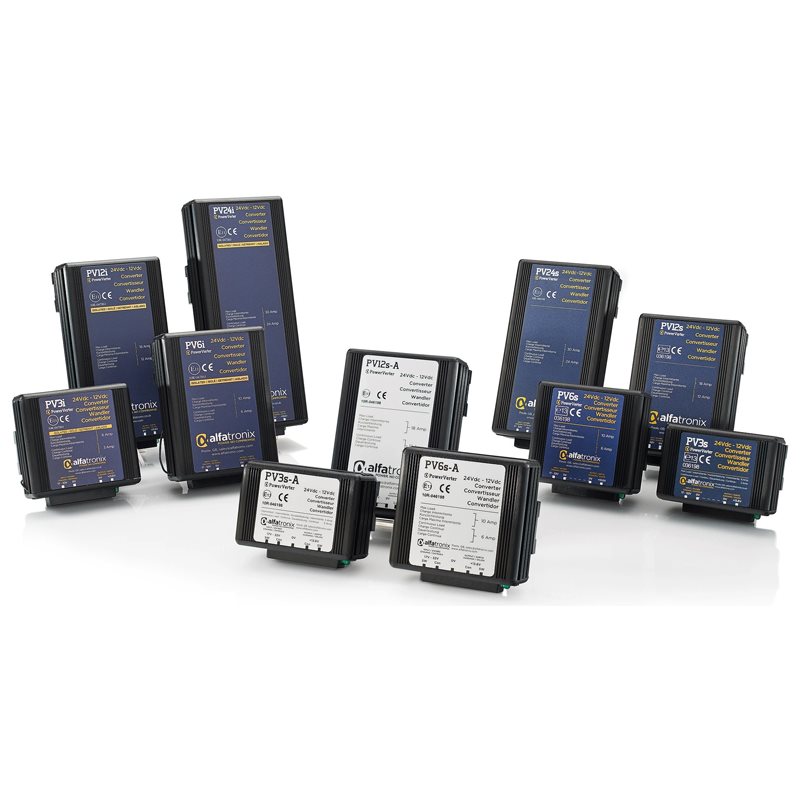

PowerVerter 24-12 VDC Voltage Converters
These products offer a convenient way to operate mass-produced 12 VDC equipment such as cell phones, in-car entertainment, professional communications, telematics equipment, refrigerators, televisions, etc. from the 24 VDC mobile electrical systems found on diesel-engined vehicles and vessels.
There are 14 products in the range from 3 A to 50 A in isolated or common earth configurations. They have been optimised for high volume 24 VDC to 12 VDC applications such as on heavy-goods vehicles, coaches, buses, forestry, and agricultural vehicles, as well as commercial, and leisure marine vehicles.
TAMPERPROOF
These units are IP53 rated, so there are no ventilation holes to permit stray objects, dust, or water droplets to enter the case. There are also no external fuses to be tampered with. Fuses will only blow if there is a fault, so there is no need to make them accessible.
PRODUCT VARIANTS
Many PowerVerters and DD Series products can be configured with alternative output voltages, etc. for specialist applications. Please call our sales team to discuss your requirements.
FAST INSTALLATION
All the units consume an off-load current of less than 15 mA, which is probably less than the self-discharge current of the vehicle’s battery. In most cases this can be ignored, speeding the installation by removing the need to fit a remote switch.
All products fit onto a “Click ‘n’ Fit” mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places and then simply click the unit into position. A fixing kit for DIN rail installation is also available.
A green LED indicates when there is output from the converter. This gives reassurance to the installation engineer and speeds fault-finding.
| CHOOSE YOUR POWERVERTER PRODUCT |
| OE No. | Cont/Int Current | Nominal Voltage |
| PV3s | 3 A/6 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV6s | 6 A/10 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV12s | 12 A/18 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV18s | 18 A/22 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV24s | 24 A/30 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV50s | 50 A/60 A
Non-Isolated | 24 VDC input,
12 VDC output |
| PV3i | 3 A/6 A
Isolated | 24 VDC input,
12 VDC output |
| PV6i | 6 A/10 A
Isolated | 24 VDC input,
12 VDC output |
| PV12i | 12 A/18 A
Isolated | 24 VDC input,
12 VDC output |
| PV18i | 18 A/22 A
Isolated | 24 VDC input,
12 VDC output |
| PV24i | 24 A/30 A
Isolated | 24 VDC input,
12 VDC output |
12 A/16 A non-isolated
Part No.: T286512801
OE No.: PV12s
12 A/18 A Isolated
Part No.: T286512840
OE No.: PV12i
18 A/22 A non-isolated
Part No.: T286512807
OE No.: PV18s
24 A/30 A non-isolated
Part No.: T286512803
OE No.: PV24s
3 A/6 A non-isolated
Part No.: T286512804
OE No.: PV3s
50 A/60 A non-isolated
Part No.: T286512834
OE No.: PV50s
6 A/10 A non-isolated
Part No.: T286512802
OE No.: PV6s
