Alfatronix 12-24 V "Up" Voltage Converters

DD Series 12-24 V “UP” Voltage Converters

If you need to fit 24 V equipment onto a 12 V electrical system, then an “Up” Converter from the DD Series offers a fast and easy way to configure your system. Now with a range from 72 w (3 A output) to 600 w (25 A output), these products offer state-of-the-art designs for fast installation, and long-term reliable operation. Typical applications include the installation of 24 V equipment on 12 V vehicles and installation of specialist equipment requiring higher operating voltages.

400 w AND 600 w 12-24 V UNITS

The latest addition to the range includes two high-current (17 and 25 amp output) units. These use state-of-the-art designs with efficiency up to 93% and practically all components are mounted using computer-controlled, surface-mount technology (SMT). The result is a robust product with low component mass. The mechanical aspects include a brand new casing profile designed for maximum heat dissipation as well as a new design of our highly successful mounting cradle that allows the unit to be fully wired before being “clicked” into place. This provides for a faster installation time with mechanics capable of withstanding long-term vibration with no risk of screws falling out.

ALSO AVAILABLE IN IP65 FORMAT

The DD Series 12–24 V products are available in either standard IP53 format (like most Alfatronix converters) or the ruggedised IP65 versions. Just add -RU to the part number. These are suitable where the installation is in a particularly hostile environment and subject to increased water and dirt exposure.

CASING FORMATS

12-24 V converters are available in two casing formats. Units from 72-240 w use the standard Alfatronix aluminium casings with polycarbonate end-caps and three-point mounting cradle. The larger 400 w and 600 w units occupy a larger heat-sink casing and utilise the heavy-duty Phoenix connector. Installation is by way of the larger four-point ‘I’ shaped mounting cradle.

 CHOOSE YOUR DD SERIES PRODCUT
 OE No.  Cont/Int Current  Nominal Voltage  Power Rating
 DD12-24 072  3 A/3.75 A
Non-Isolated
 12 VDC input,
24 VDC output
 72 w
 DD12-24 168  7 A/9A
Non-Isolated
 12 VDC input,
24 VDC output
 168 w
 DD12-24 240  10 A/13 A
Non-Isolated
 12 VDC input,
24 VDC output
 240 w
 DD12-24 400  17 A/22 A
Non-Isolated
 12 VDC input,
24 VDC output
 408 w
 DD12-24 600  25 A/30 A
Non-Isolated
 12 VDC input,
24 VDC output
 600 w

168 w
Part No.: TBA

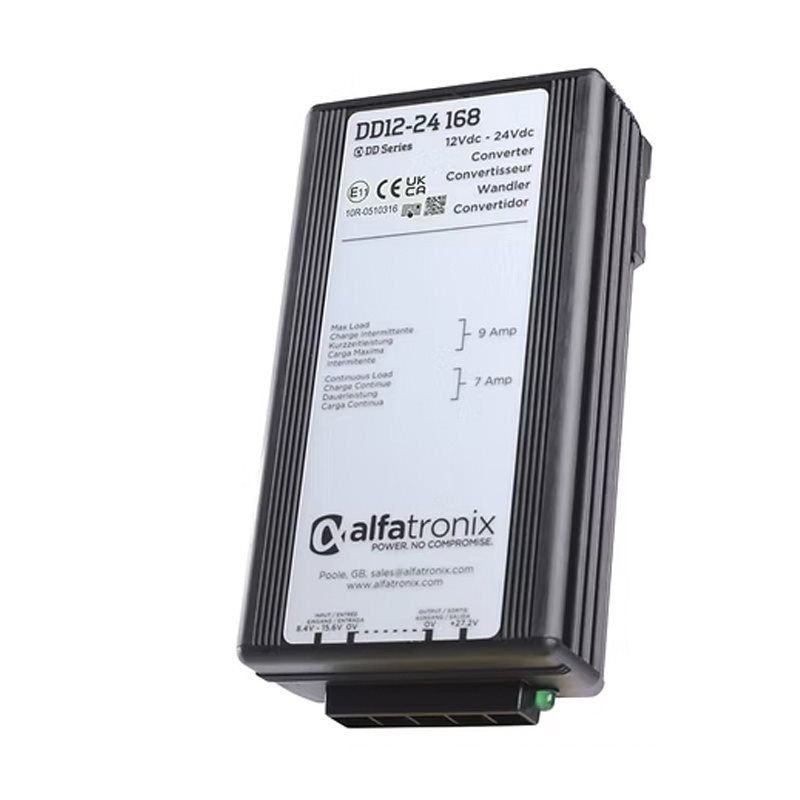

OE No.:  DD12-24 168
240 w
Part No.: T286512817

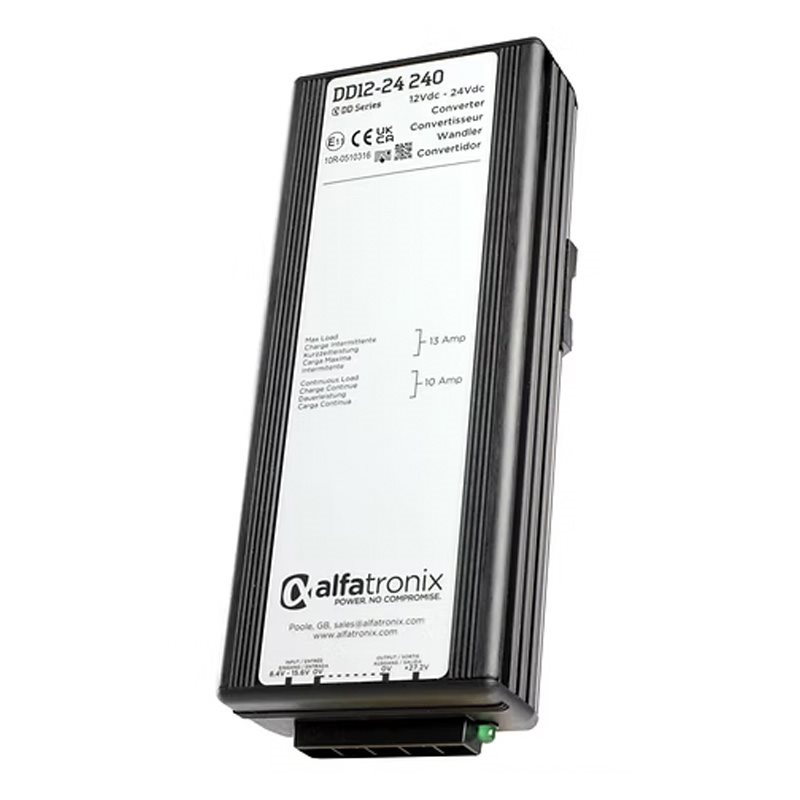

OE No.:  DD12-24 240
400 w
Part No.: T286512824
OE No.: DD12-24 400
600 w
Part No.: T286512813
OE No.: DD12-24 600
72 w
Part No.: T286512809

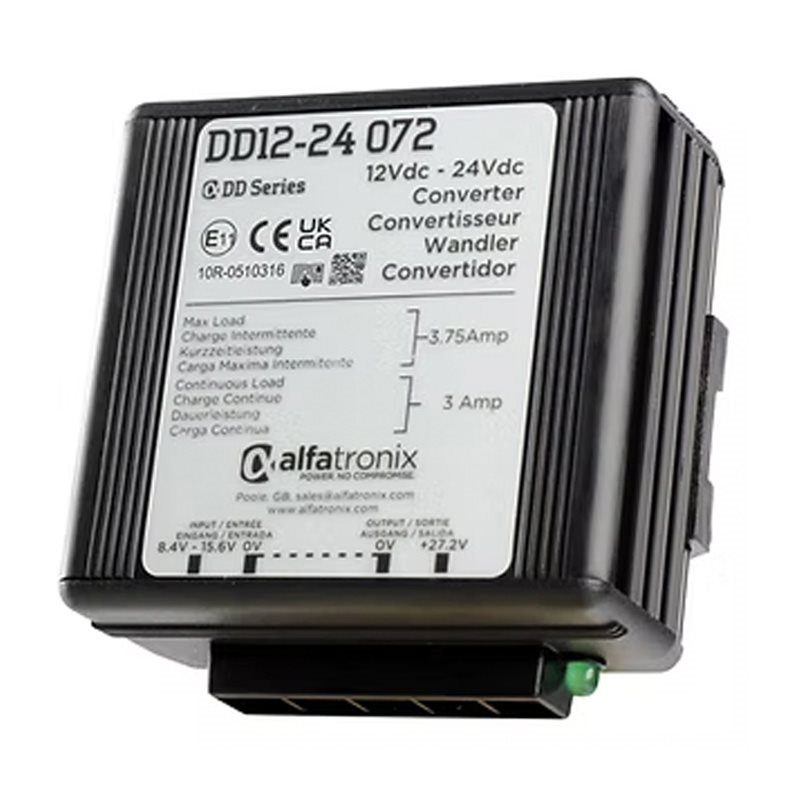

OE No.: DD12-24 072
