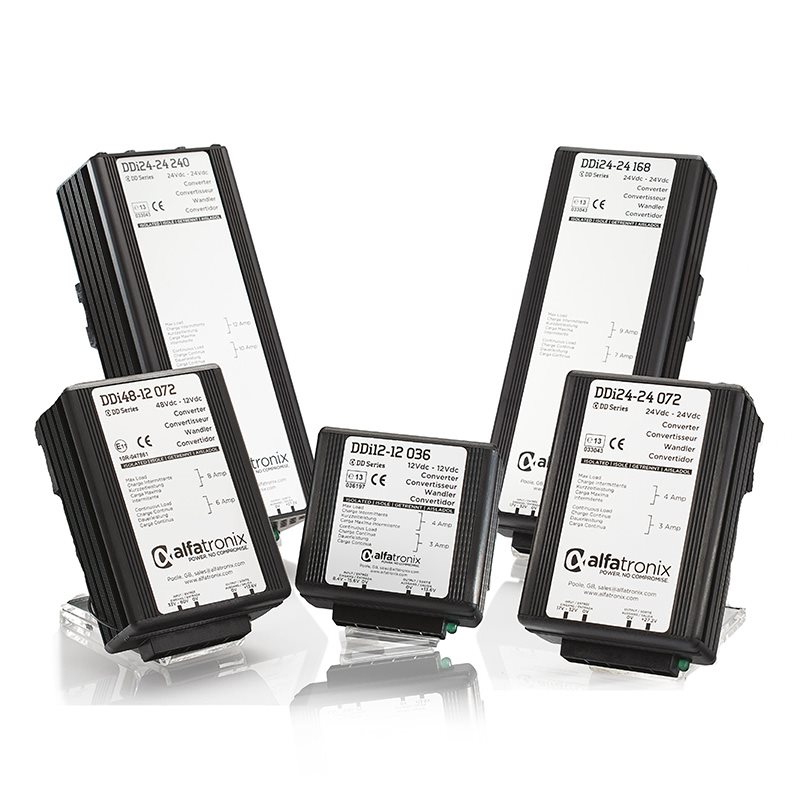

Alfatronix DD & DDi Series Voltage Converters

Alfatronix DD & DDi Series Voltage Converters

The sensitivities of modern electronic equipment to variable input voltages, susceptibility to EMC interference and in some cases, the need to isolate the supply has made voltage stabilisation an important section of our product range. Start/Stop technology on motor vehicles has added to this problem. The DDi Series offers a wide range of 12 V-12 V and 24 V-24 V isolated products that ensure a stable and reliable voltage can be delivered to important equipment. Units are available from 36-240 w. The range now also offers 48 V-12 V units, suitable for the telecoms and forklift truck markets. For 12 V-24 V converters, see DD Series ‘Up’ Voltage Converters.

A COMPREHENSIVE PRODUCT RANGE

There are four products in the 12 V-12 V isolator range from 36 w to 168 w and a further five products in the 24 V-24 V range from 36 w to 240 w. There are also three 48 V-12 V products from 36 w to 108 w. All products use modern switchmode designs and are built using the same concepts and technologies as the successful PowerVerter range, which will of course meet your 24 V–12 V requirements.

FAST INSTALLATION

All the units consume an off-load current of less than 15 mA, which is probably less than the self discharge current of the vehicle’s battery.

 CHOOSE YOUR DD SERIES PRODUCT
 OE No.  Cont.Int.
Current
 Nominal
Voltage
 Power
Rating
 DDi12-12 036  3 A/4 A Isolated  12 VDC input, 12 VDC output  36 w
 DDi12-12 072  6 A/8 A Isolated  12 VDC input, 12 VDC output  72 w
 DDi12-12 108  9 A/11 A Isolated  12 VDC input, 12 VDC output  108 w
 DDi12-12 168  14 A/18 A Isolated  12 VDC input, 12 VDC output  168 w
 DDi24-24 036  1.5 A/2.5 A Isolated  24 VDC input, 24 VDC output  36 w
 DDi24-24 072  3 A/4 A Isolated  24 VDC input, 24 VDC output  72 w
 DDi24-24 108  4.5 A/6 A Isolated  24 VDC input, 24 VDC output  108 w
 DDi24-24 168  7 A/9 A Isolated  24 VDC input, 24 VDC output  168 w
 DDi24-24 240  10 A/12 A Isolated  24 VDC input, 24 VDC output  240 w
 DD48-12 072  6 A/8 A Non-Isolated  48 VDC input, 12 VDC output  168 w
 DD48-12 108  9 A/11 A Non-Isolated  48 VDC input, 12 VDC output  108 w
 DD48-12 240  20 A/24 A Non-Isolated  48 VDC input, 12 VDC output  240 w
 DDi48-12 036  3 A/6 A Isolated  48 VDC input, 12 VDC output  36 w
 DDi48-12 072  6 A/8 A Non-Isolated  48 VDC input, 12 VDC output  72 w
 DDi48-12 108  9 A/11 A Isolated  48 VDC input, 12 VDC output  108 w

10 A/12 A Isolated; 240 w
Part No.: T286512819
OE No.: DDi24-24 240
3 A/4 A Isolated; 36 w
Part No.: T286512814
OE No.: DDi12-12 036
3 A/4 A Isolated; 72 w
Part No.: T286515601
OE No.: DDi24-24 036
6 A/8 A Non-Isolated; 72 w
Part No.: T286512811
OE No.: DDi48-12 072
7 A/9 A Isolated; 168 w
Part No.: T286512812
OE No.: DDi24-24 168
