Made for Heavier Loads and Bigger Rigs!
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR12 and 12-S feature IP68- rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working, standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright® contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece, cast-aluminium tie-plate for added strength and durability
- Two-in-one remote with wired and wireless options for ease of use and versatility
- Available with wire or synthetic rope
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
- Designed, engineered, and tested by WARN engineers in the U.S.A.
| Specifications |
| Rated Line Pull: |
5443 kg |
| Motor: |
12 Vdc, series wound |
| Electrical Controls: |
Albright® Contactor |
| Remote Control: |
2-in-1 plug-in remote with wireless capability |
| |
& 3.5 m lead |
| Gear Train: |
3-stage planetary |
| Gear Ratio: |
234:1 |
| Clutch (freespooling): |
Rotating ring gear clutch |
| Brake: |
Spring Brake |
| Drum Dia./Length: |
Steel and Synthetic: |
| |
6.73 cm/23 cm |
| Weight Steel: |
33.39 kg |
| Weight Synthetic: |
24.98 kg |
| Rope Steel: |
9.5 mm x 25.9 m |
| Rope Synthetic: |
9.5 mm x 27.4 m |
| Fairlead: |
Steel: Roller, Synthetic: Die-cast Hawse-style |
| Recommended Battery: |
650 CCA min. for winching |
| Battery Leads: |
25 mm x 2 m |
| Finish: |
Powder coating over primer undercoating |
| Winch Dimensions: |
534 (l) x 160.5 (d) x 256 (h) mm |
| Mounting Bolt Pattern: |
254 mm x 114.3 mm |
| 12 Vdc Performance Specs (first layer of drum) |
| Line Pull |
Line Speed |
Motor |
Pull by Layer: |
| kg |
m/min. |
Current |
Layer/kg |
| 0 |
8 |
55 Amps |
1/5 443 |
| 910 |
4.2 |
120 Amps |
2/4 446 |
| 1810 |
2.9 |
178 Amps |
3/3 757 |
| 2720 |
2.5 |
234 Amps |
4/3 254 |
| 3630 |
2.1 |
288 Amps |
5/2 869 |
| 4536 |
1.5 |
337 Amps |
|
| 5440 |
1.2 |
396 Amps |
|
Steel Rope
Part No.: T1100024543
OE No.: 12

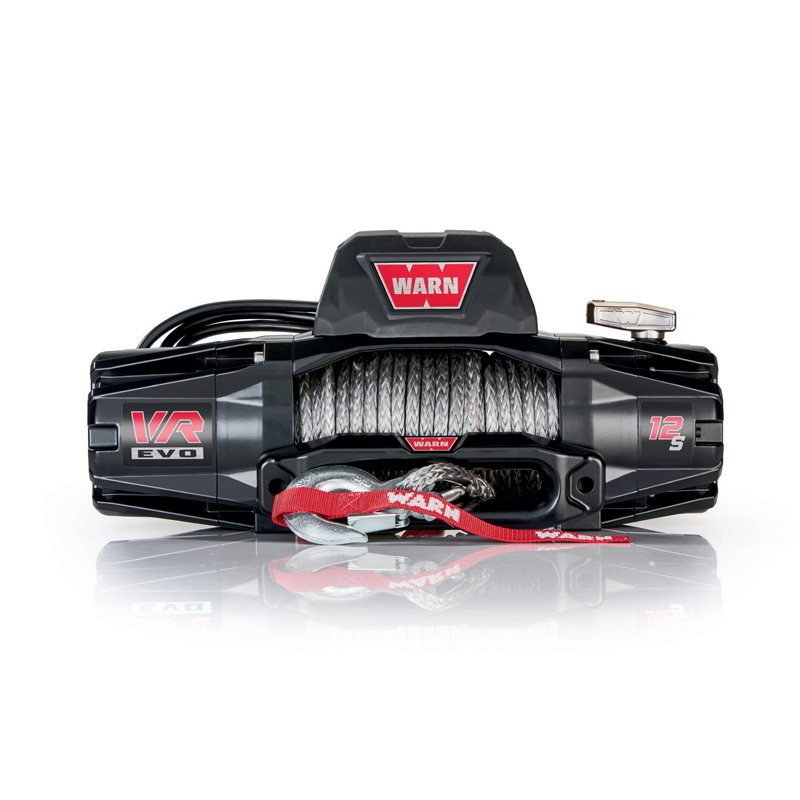

Synthetic Rope
Part No.: T1100024545
OE No.: 12-S
