Warn EV EVO 10-Series Winches

The Perfect Blend of Speed and Power!

Ideal weight capacity and line speed for 1/2-ton pickups, Jeeps, and larger SUVs. The VR EVO 10 and 10-S feature IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO series of winches are the hardest-working, standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright® contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece, cast-aluminium tie-plate for added strength and durability
  • Two-in-one remote with wired and wireless options for ease of use and versatility
  • Available with wire or synthetic rope
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical
  • Designed, engineered, and tested by WARN engineers in the U.S.A.

  Rated Line Pull:   4536 kg
  Motor:   12 Vdc, series wound
  Electrical Controls:   Albright® Contactor
  Remote Control:   2-in-1 plug-in remote with wireless capability
    & 3.5 m lead
  Gear Train:   3-stage planetary
  Gear Ratio:   218:1
  Clutch (freespooling):   Rotating ring gear clutch
  Brake:   Spring Brake
  Drum Dia./Length:   Steel and Synthetic:
    6.73 cm/23 cm
  Weight Steel:   33.9 kg
  Weight Synthetic:   25.04 kg
  Rope Steel:   9 mm x 27.4 m
  Rope Synthetic:   9.5 mm x 27.4 m
  Fairlead:   Steel: Roller, Synthetic: Die-cast Hawse-style
  Recommended Battery:   650 CCA min. for winching
  Battery Leads:   25 mm x 2 m
  Finish:   Powder coating over primer undercoating
  Winch Dimensions:   534 (l) x 160.5 (d) x 256 (h) mm
  Mounting Bolt Pattern:   254 mm x 114.3 mm

  12 Vdc Performance Specs (first layer of drum)
  Line Pull   Line Speed   Motor   Pull by Layer:
  kg   m/min.   Current   Layer/kg
  0   8.3   58 Amps   1/4 536
  910   4.2   125 Amps   2/3 731
  1810   3.0   185 Amps   3/3 169
  2720   2.5   244 Amps   4/2 754
  3630   2.0   303 Amps   5/2 436
  4536   1.6   358 Amps

Steel Rope
Part No.: T1100024541
OE No.: 10

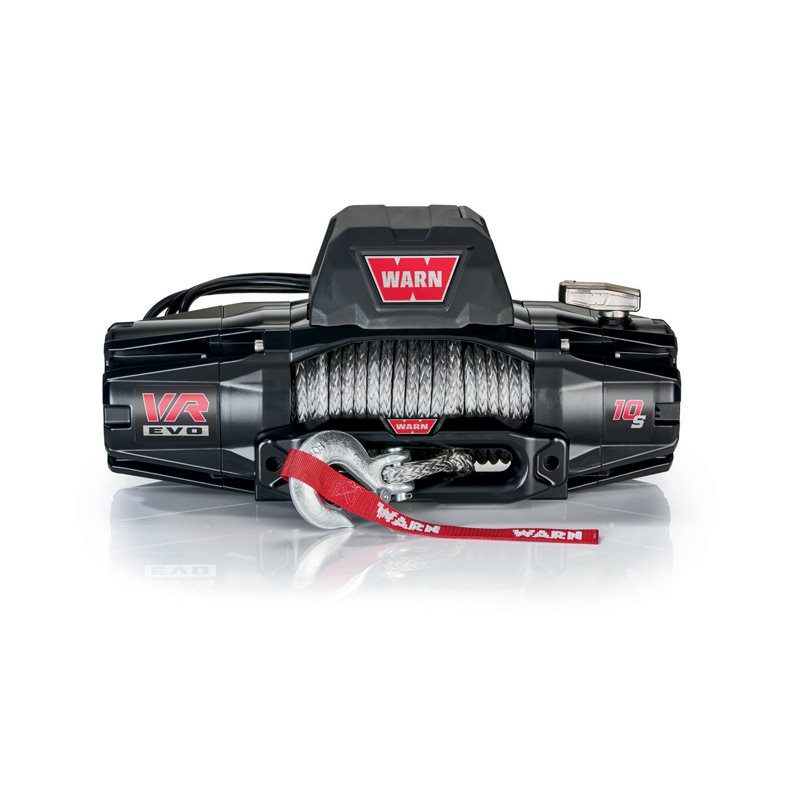

Synthetic Rope
Part No.: T1100024542
OE No.: 10-S
