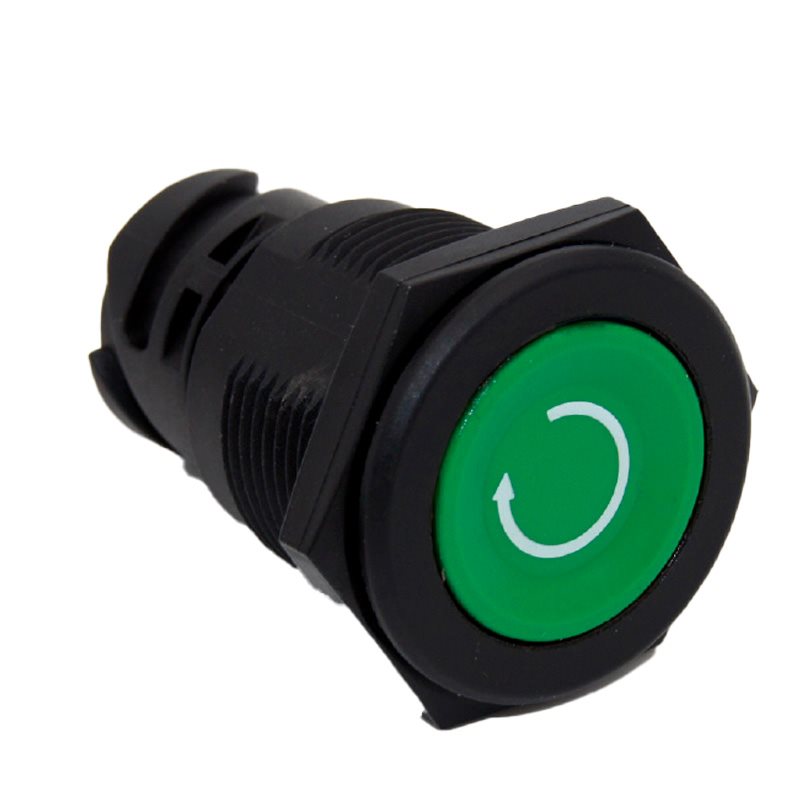

KISSLING SERIES TS PUSH-BUTTON SWITCH
Our push-button switches are designed and manufactured to the highest quality standards. The switches are available as 1-pole and 2-pole versions
with change-over function. These switch types are suited for various mounting conditions and meet your individual requirements. The push button itself is available in various colours, with different symbols on the actuator and also as an illuminated version.
The push-button switch is characterised by its IP6K9K sealing rating and its high shock and vibration resistance. It is highly suitable for performance under demanding environmental conditions.
APPLICATIONS
- Commercial Vehicles
- Plant and Industrial Engineering
- System Start/Stop Applications
- Remote-Control Panels
FEATURES
- Central thread & flange mounting options
- DIN connector, solder pins, or flying lead electrical connection options
- Various actuator colours available both with or without function symbols
- Indicator light option (integrated LED)
| TECHNICAL DATA |
| Temperature Range |
-40 °C ~ +90 °C |
| Thread Sizes/Torque |
M30 = max. 5 Nm | M6 = max. 7 Nm |
| Pre-Travel |
1.5 ± 0.5 mm |
| Contact Travel |
2.5 ± 0.5 mm |
| Operating Force |
Max. 40N |
| Mechanical Life |
100 000 cycles |
| Frequency |
Max. 100/min |
| Voltage Range |
9 VDC - 32 VDC |
| Resistive Load |
10 mA - 5 A |
