Proximity Detection //

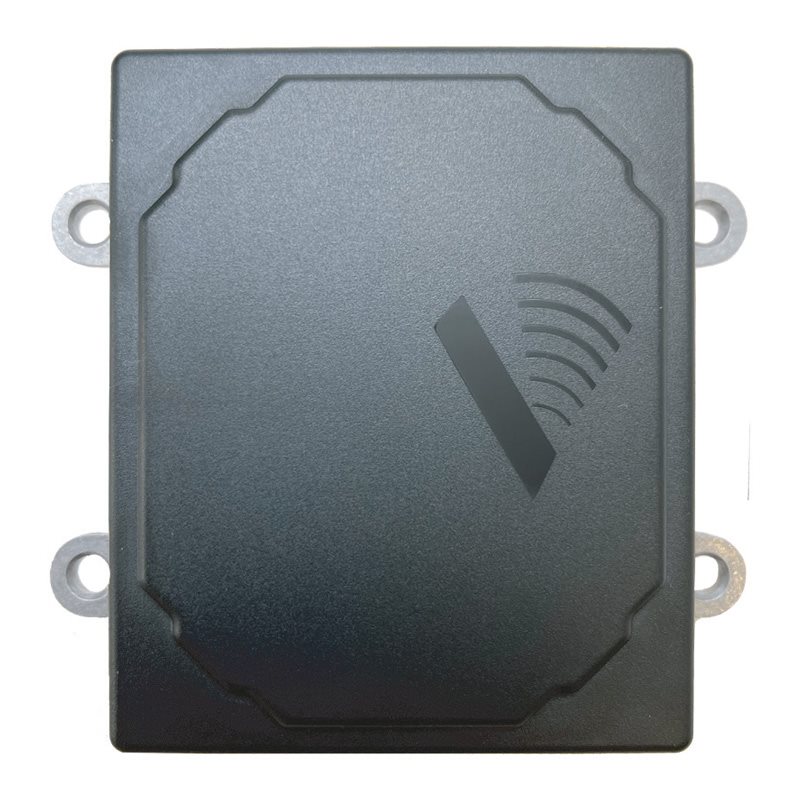

PrecoRADAR PreView Sentry® 79 Blind Spot Monitoring

The industry's most flexible, accurate, and powerful active blind spot monitoring solution available

Discover the epitome in front and rear blind zone detection. The PreView Sentry®79 is an ideal solution for backing and short-range forward requirements.

  • Programmable range and width
  • Accurately detects and tracks up to 64 people or objects simultaneously
  • Width of detection zone is adjustable to fit almost any vehicle type to help keep operators and job sites safer
  • Detects objects to the face of the radar
  • Environmentally hardened/robust

Key Industries

Construction, material handling, truck, and bus.

Compliance and Verification

  • UN Regulation No. 159
  • TÜV and successful homologation

Why PrecoRADAR?

PrecoRADAR is a radar brand of Sensata Technologies. Sensata’s safety products have survived the industry’s most rigorous testing for unstoppable performance in the harshest working conditions imaginable — so operators and fleets can perform with greater confidence and peace of mind.

 SPECIFICATIONS
Frequency Band 77–81 GHz Bandwidth, FMCW Waveform
Communication
Interface
2x CAN 2.0b. J1939 250/500 Kbits/sec.
(1 Mbps/sec. option)
Range Configurable from 0.3–40 m
Range Resolution 0.2 m
Range Accuracy ±0.2 m
Vertical Field of View ±3.5 degrees
Horizontal Field of View ±75 degrees
Max. Doppler Velocity ±26.1 m/s
Doppler Resolution 0.5 m/s
Doppler Accuracy ±0.2 m/s
Number of Raw Targets Up to 64
Number of Target Tracks Up to 64
Update Rate 50 ms
Input Power 9-33 VDC up to 600 mA max
Auxiliary Input/
Auxiliary Output
9-33 VDC/9-33 VDC -
Switch Ground
Operating/Storage
Temperature
-40 °C to +85 °C/
-55 °C to +105 °C
System Diagnostics Built-in Self Test (BIST),
Sensor Blockage Warning
Enclosure IP6K9K

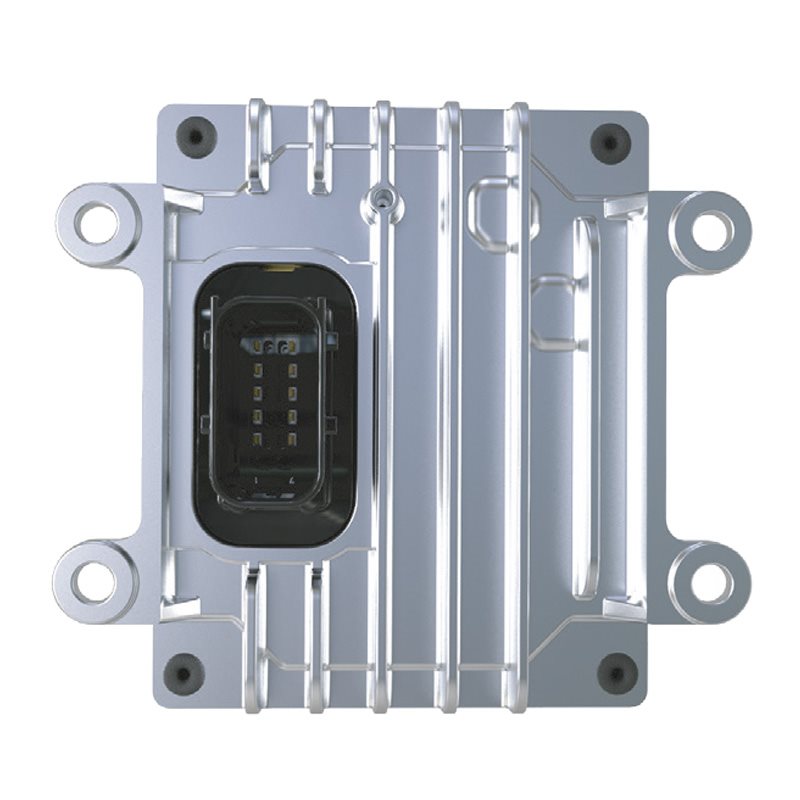

Connector Type TE GET64, HDSCS 12 pin

Part No.: Sentry79_TBA
