Radar Systems //

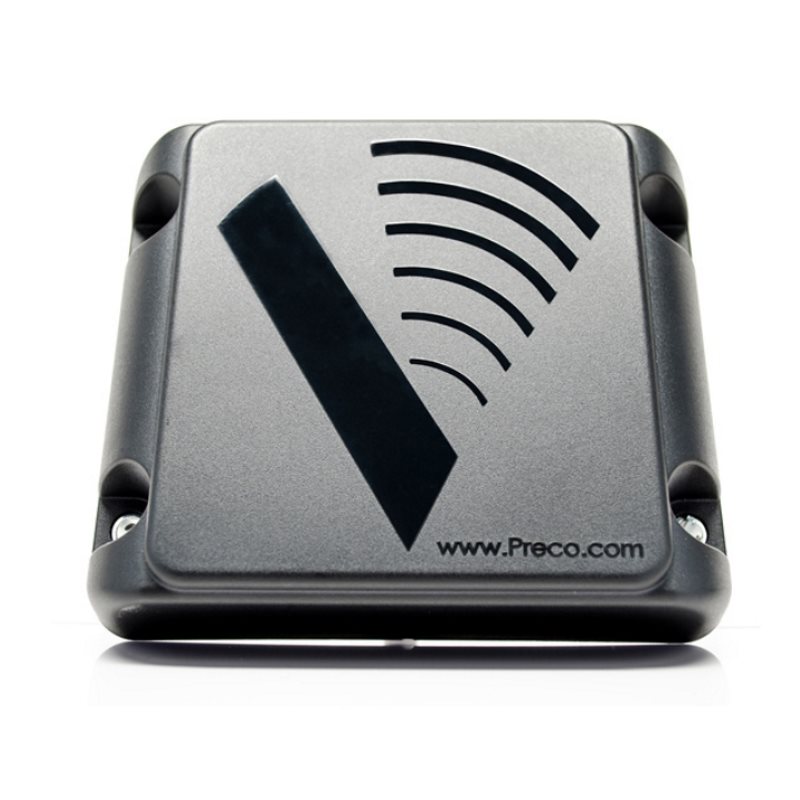

PreView® Sentry Plus System

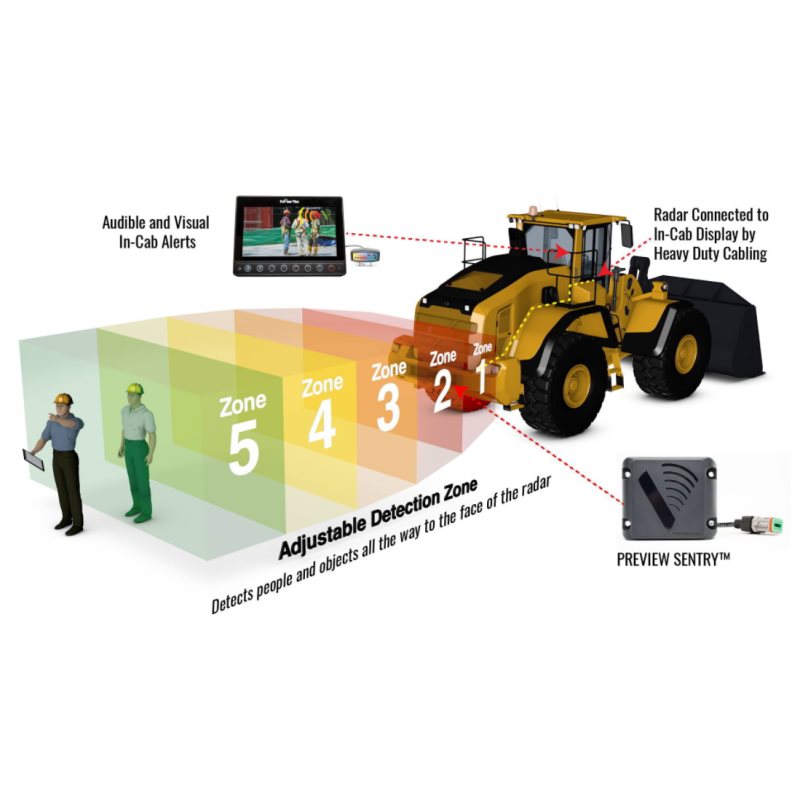

PreView Sentry® radar is the most flexible and reliable radar available for heavy-duty vehicle and equipment industries. Sentry accurately detects objects in equipment blind zones and notifies the operator with both audible and visual alerts. These alerts warn the operator of potential collisions and allow them to take the appropriate action. Sentry is built tough to withstand the harshest working conditions imaginable, so it works everytime, all the time.

PreView Sentry® is the world’s most flexible object detection radar. With programmable detection zones, PreView Sentry can cover rear, side and front blind spots on any equipment or vehicle. Built tough for heavy-duty applications, Sentry will help companies reduce costs, decrease the incidents of collisions and most importantly, save lives.

  • Three Sensors for Excavator
  • Rugged design, engineered to operate in all weather conditions
  • Customizable detection zones - range and width
  • Measures distance and angle to objects, providing object location
  • Measures velocity of objects
  • Provides in-cab audible and visual active alerts
  • Integrates with PreView Plus camera/monitor system, or any existing vision system
  • Built-in sensor failure alert
  • CANbus communication protocol - ability to report sensor data to a logging device or telematics applications
  • Ability to track up to 16 objects simultaneously
  • Detects objects all the way to the face of the radar
  Technical Data
  Measuring Performance
  Programmable Range   0 - 30 m
  Programmable Width   2 - 8 m
  Azimuth Field of View   ± 75°
  Elevation Field of View   ± 10°
  Operating Conditions
  Frequency   24.00 - 23.25 GHz (ISM Band)
  Power Supply   9 -33 Vdc, Reverse polarity and
  over-voltage protected
  Current   <0.5 A
  Operating Temperature   -40° C - 85°C
  Shock   50 G
  Vibration   25 G, random, all three axis
  Protection Rating   IP69K
  Communication Interface
  J1939/ISO 11898 CANbus   250 Kbits/sec, terminated, with 120 ohm resistor
  (default). Supports up to 500 Kbits/sec
  Alarm Output Interface   Switch to ground, sink up to 1 amp, over
  current protected
  Construction, Mining, Trucking, Fleet, Waste, Utility, Delivery, Municipalities

Part No.: T175215914
