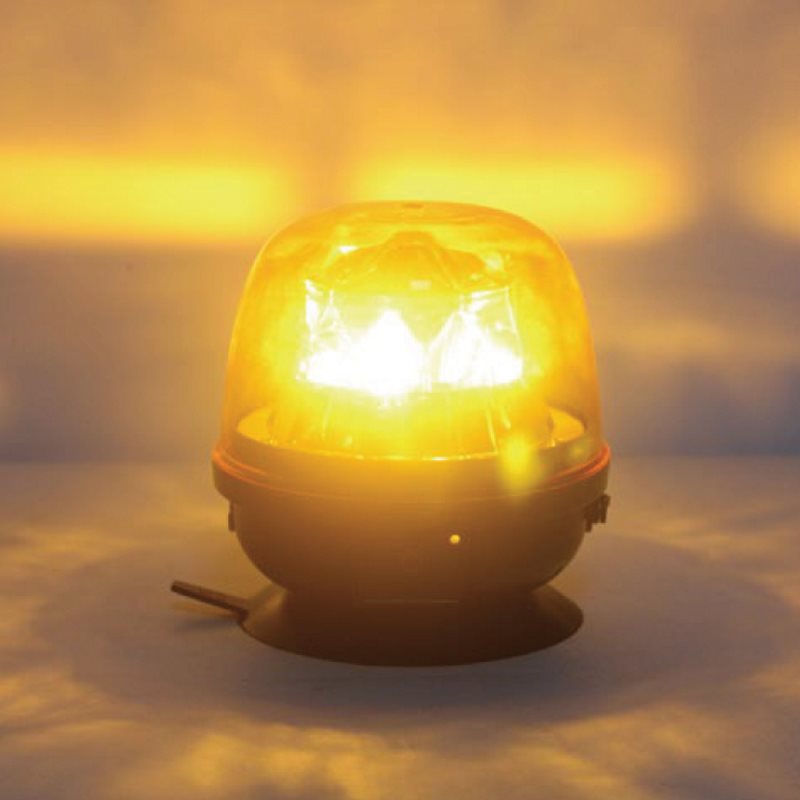

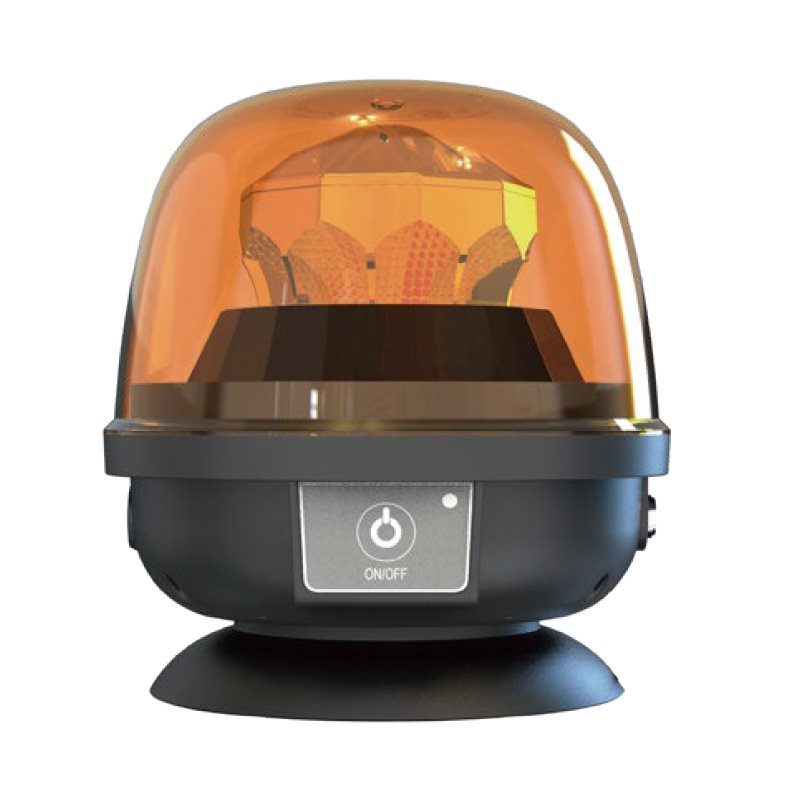

This LED beacon has unique LED reflectors which provide a focused signal for superior brightness. The lens construction provides an excellent horizontal spread for easy identification of optical signal. The light has 3 flash patterns plus 4 simulated rotating patterns which provide plenty of lighting options. Low amp draw and bright output make it the ideal beacon for everyday use.
Features:
- 12 - 24 V

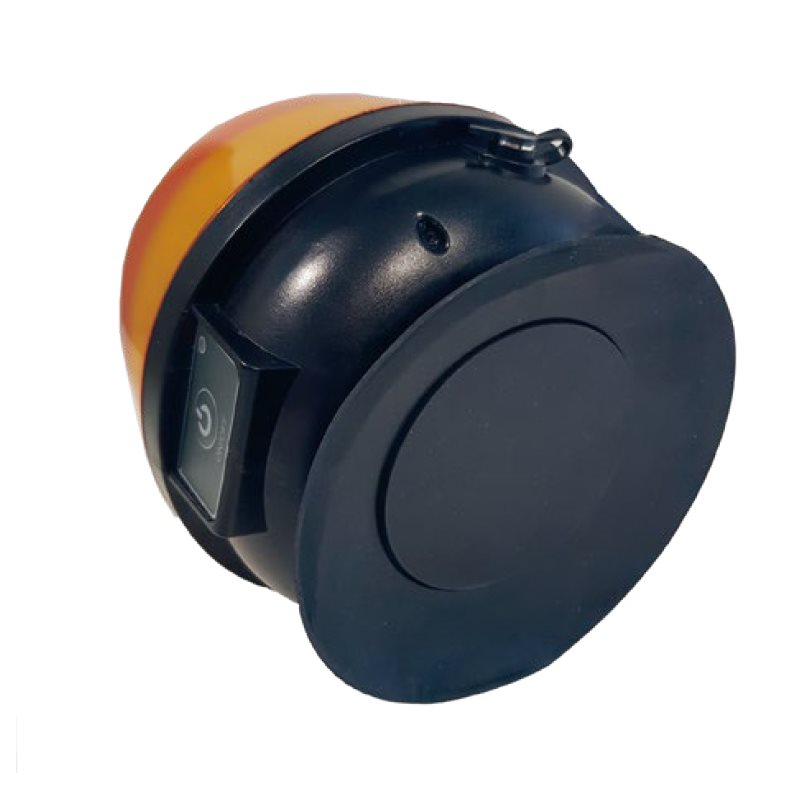

- Magnetic base
- 4 Hour Charge pendant
- 6 Hour Discharging time
- Shock Resistant
- ECE R65 Approved
- EMC R10 Approved
- IP67 Rating
- -40°C to +65°C Operating temperature
| Lighting Patterns |
| # |
4-Mode Rotation |
# |
3-Mode Flash |
| 1. |
Slow-Clockwise Rotation |
1. |
A Single Flash |
| 2. |
Quick-Clockwise Rotation |
2. |
Double Flash |
| 3. |
Slow-Anticlockwise Rotation |
3. |
Triple Flash |
| 4. |
Quick-Anticlockwise Rotation |
|
|
| Technical Data |
| Power Consumption |
18 w |
| Current/Voltage |
0.75 A @ 24 V |
| SMD |
3 535 |
| LED Qty |
10 |
| Colour Temperature |
590-595 K |
| Compliance |
R65 |

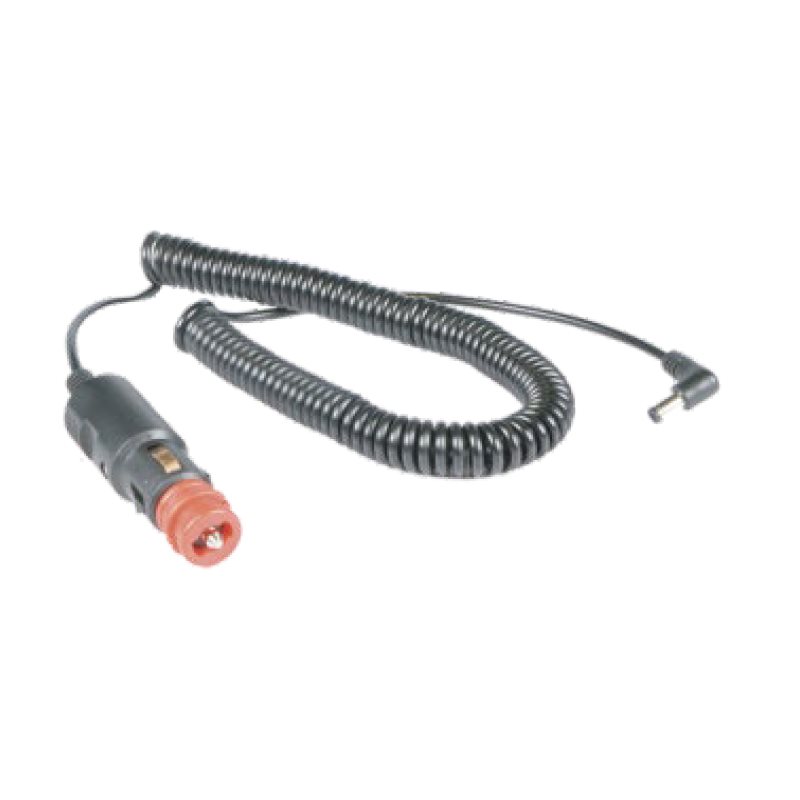

| Charging Interface |
DC5.5/2.1 |
| Electric Core |
Double Section 18 650 Lithium Ion |
| Capacity |
7.4 V 2 600 mAh |
| Charging Voltage |
12 V |
| Charging Current |
700 mA |
| Charge Pendant |
4 H |
| Discharging Time |
6 H |
Amber
Part No.: T330012406
White
Part No.: T330012407
