Prevent Drunk Driving Before It Starts. Ensure Safe Driving with ALCOSCAN.

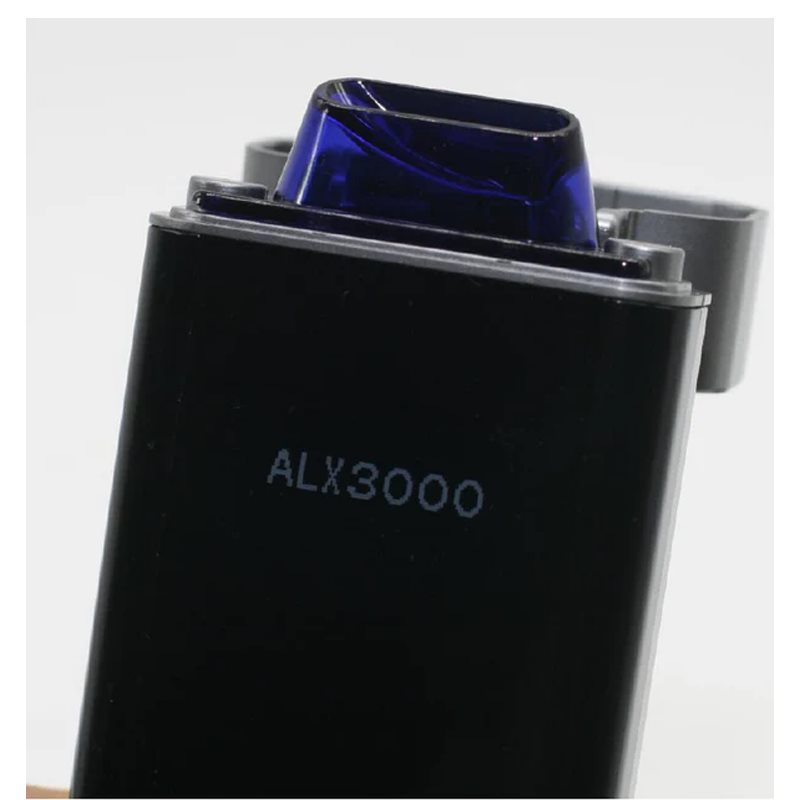

This advanced Breath Alcohol Ignition Interlock Device (BAIID) prevents a vehicle from starting if alcohol is detected on the driver’s breath. Ideal for both personal and fleet vehicles, the ALX3000 ensures every driver is fit to drive.
How it Works

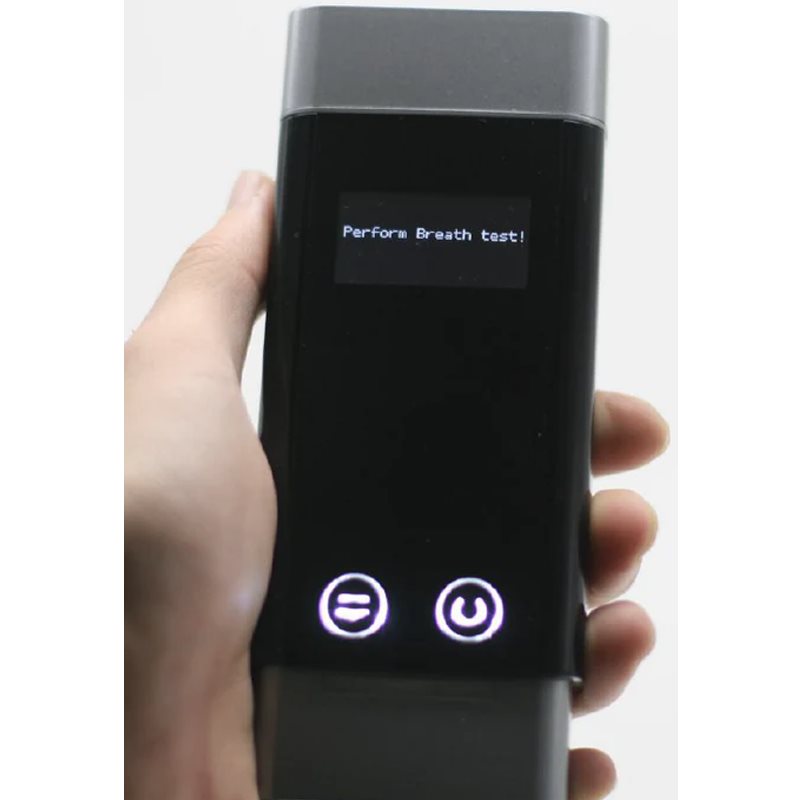

A driver must pass a breathalyser test using the ALCOSCAN ALX3000 handset before the engine can start. If alcohol is detected above the legal limit, the ignition is disabled.
Handset Features
- Alcohol Sensor: Detects alcohol from breath
- Temperature & Flow Sensors: Ensures valid breath samples
- Altitude Sensor: Adjusts for environmental conditions
- OLED Display: Shows PASS/FAIL result in 2-colour LED
- Memory: Saves test results and references
- Audible Buzzer: Sound alerts for test results
- Pump & Sampling Tube: Maintains breath conditions

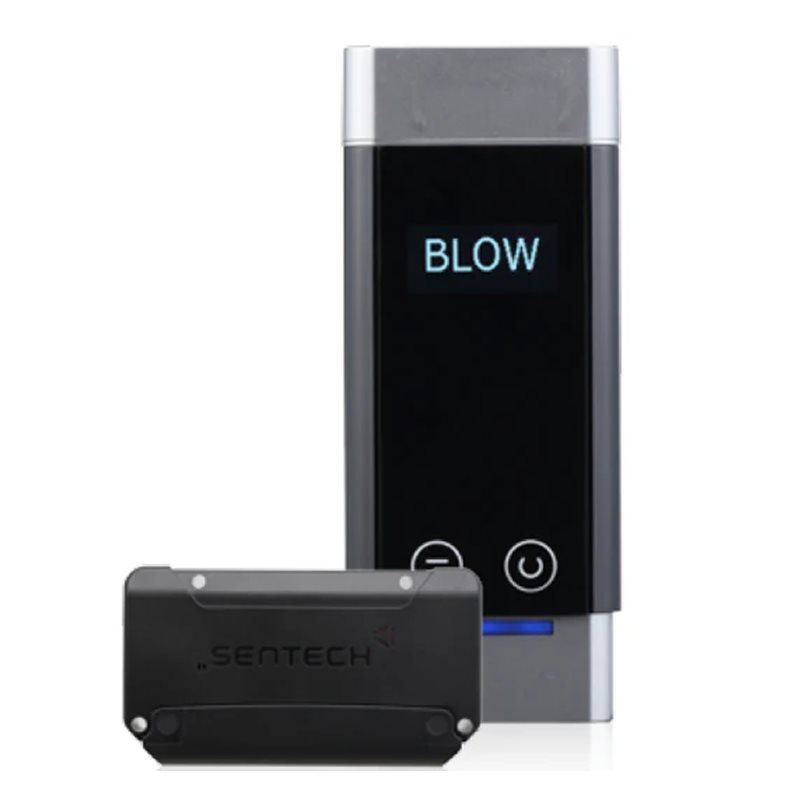

Control Box Features
- Relay Control: Disables ignition on failed test
- MCU & Timer: Manages test logic and timing
- Data Memory: Stores up to 100 000 event logs
- Communication IC: Sends data to PC or server
- Power & I/O Circuit: Monitors and interfaces with vehicle systems
SPECIFICATIONS |
Size |
Handset: 160 x 58 x 34 mm Control Box: 108 x 158 x 38 mm |
Weight |
Handset: 135 g Control Box: 650 g |
Operating Temperature |
-40 °C ~ 85 °C |
Result Range |
0.00 ~ 2.00 mg/l |
Warming-up Time |
Less than 60 sec. at -20 °C |
Analysis Time |
5-25 sec. |
Recovery |
10-30 sec. |
Calibration |
Every 12 months or per regulation |
Certifications |
EN 50436-1:2014 EN 50436-2:2014 E-Mark (E11) IATF 16949:201 |
Power Supply |
12-24 VDC |
Part No.: T260015501
OE No.: AXL3000
