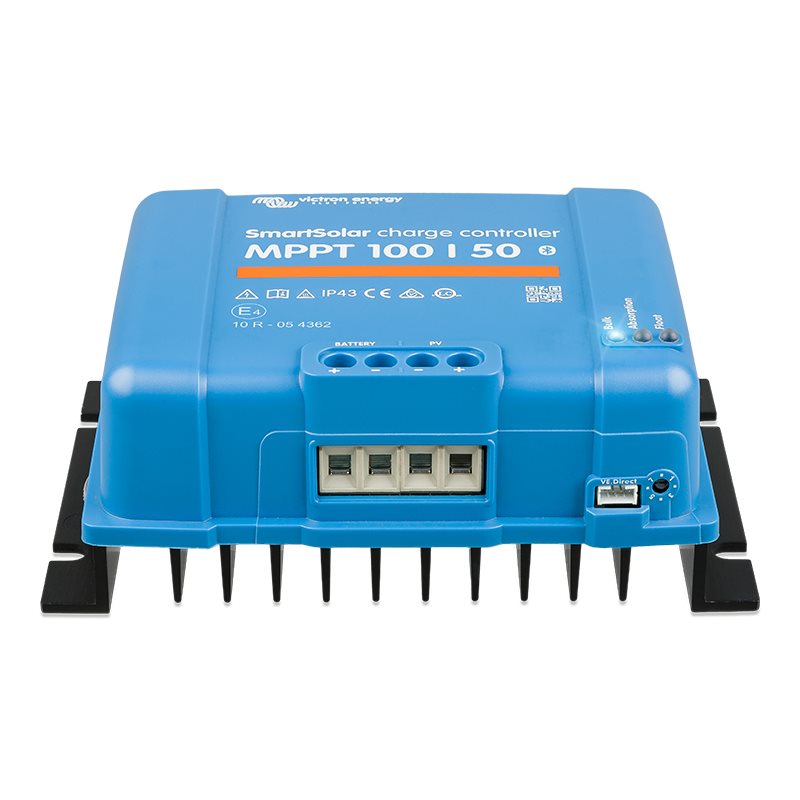

Victon Energy MPPT Charge Controllers 100/30 & 100/50

Victon Energy MPPT Charge Controllers 100/30 & 100/50
A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge
in the shortest possible time. SmartSolar maintains battery health and extends battery life.

The SmartSolar Charge Controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

On a cloudy day, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower
MPPT controllers.

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative
BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

The device has a fully programmable charge algorithm (see the software page on the Victron Energy website), and eight pre-programmed algorithms, selectable with a rotary switch.

  • Ultrafast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • Outstanding conversion efficiency
  • No cooling fan. Maximum efficiency exceeds 98%
  • The full output current up to 40 °C (104 °F)
  • Flexible charge algorithm
  • Extensive electronic protection
    • Over-temperature protection and power derating when the temperature is high
    • PV short-circuit and PV reverse-polarity protection
    • PV reverse-current protection
  • Internal temperature sensor
    • Compensates absorption and float charge voltage for temperature
  • Real-time data display options
    • ColourControl GX or other GX devices: see the Venus documents on the Victron Energy website
    • A smartphone or other Bluetooth-enabled device
    • VE.Direct Bluetooth Smart dongle needed
MPPT 100/30
Part No.: SCC110030210
OE No.: T1200156100
Add to cart
MPPT 100/50
Part No.: TBA
OE No.: TBA
Add to cart
