TE Connectivity NTSEAL Sealed Wire-to-Wire Connectors

NTSEAL Sealed Wire-to-Wire Connectors

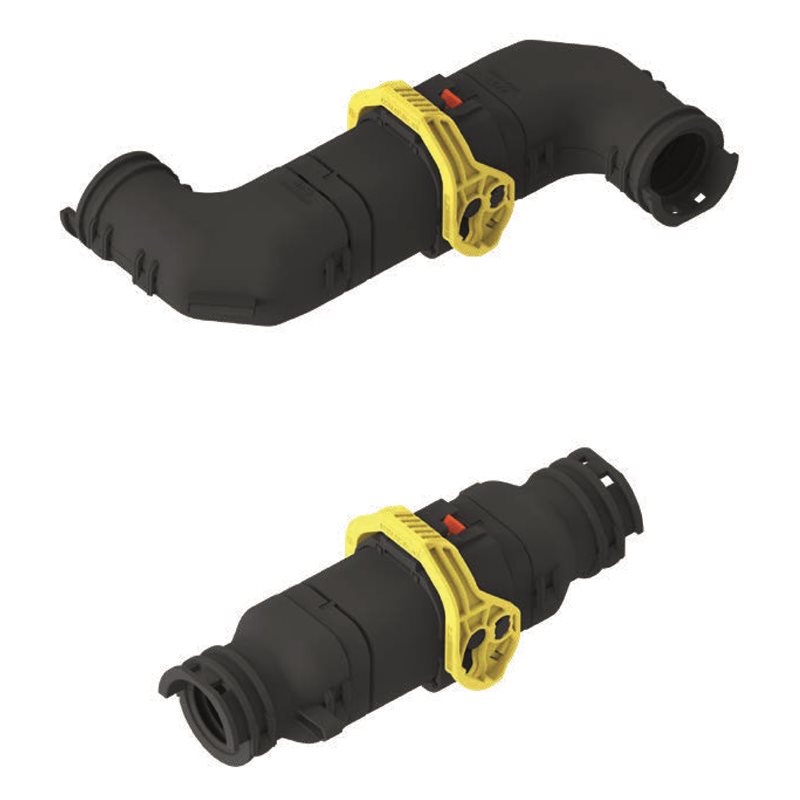

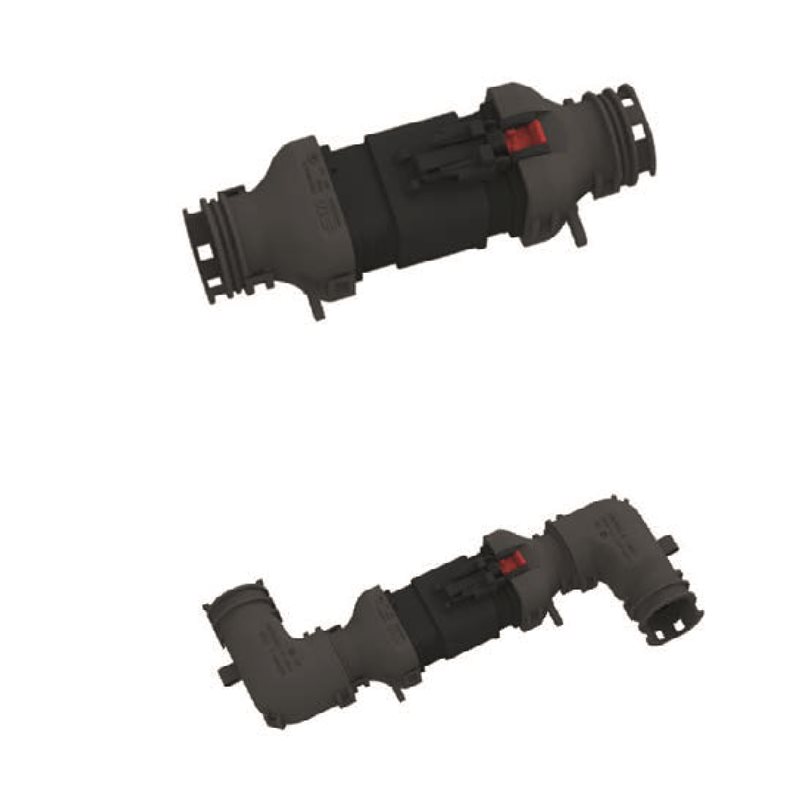

Providing robust wire-to-wire connectivity in a compact footprint, TE Connectivity's (TE's) family of innovative NTSEAL Sealed Connectors utilise the proven DEUTSCH common contact system for serviceable applications in harsh environments. The rugged connector system is available in 20, 26, and 48 positions and is IP67, IP68, and IP6K9K rated (with backshells) for use in agricultural vehicles, buses, construction equipment, trucks, and other applications where proven environmental protection is required.

Integrated TPA, CPA, and tool-free panel installation help eliminate the need for additional components or specific tools, allowing for quick and easy harness assembly, installation, and repair. This hybrid connector system allows for signal and power together in one connector by using size 12, 16, and size 20 contacts. This is coupled with a small footprint to enable flexibility for the harness designer.

The 26 and 48 position connector introduces an improved design with an integrated locking lever which facilitates mating operation. This locking mechanism enhances user experience by speeding up assembly and providing proper connector mating.

APPLICATIONS

  • Wire-to-Wire
  • Panel/Bulkhead Mount
  • Engine
  • Chassis
  • Automation
  • After-Treatment

INDUSTRIES

  • Truck
  • Construction
  • Bus
  • Power Sports
  • Specialty Vehicles
  • Marine
  • Agriculture
  • Lift Truck
  • Recreational

FEATURES & BENEFITS

High Density

  • Compact, high-density footprint in 20, 26, and 48 position options

Ease-of-Use

  • Seamless mating operation with integrated lever

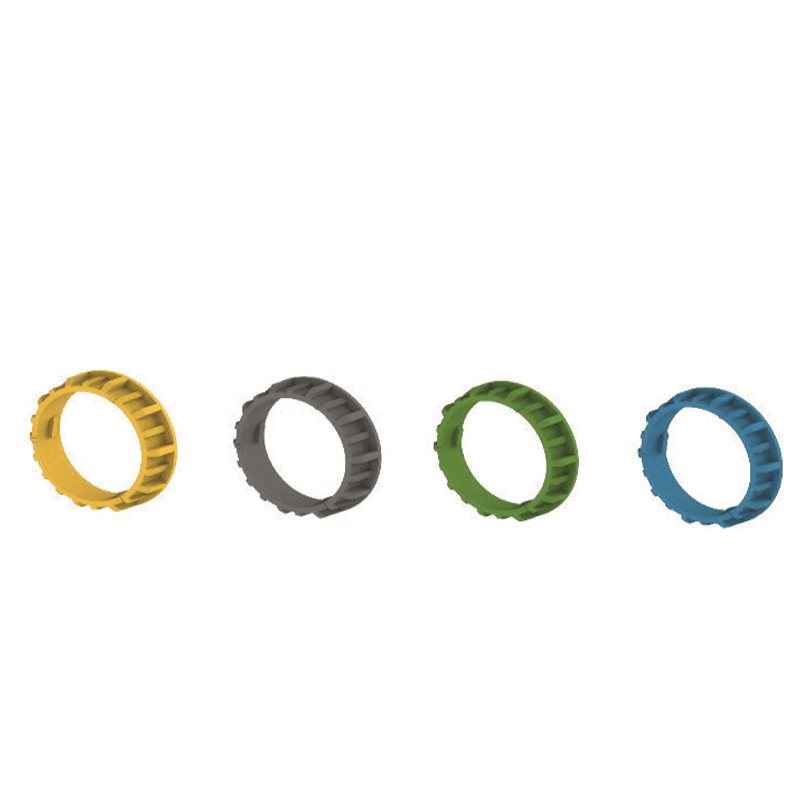

  • Prevents mis-mating of connectors with four coding options and colours
  • Optimal flexibility with wire-to-wire inline and flange-mount options with tool-free panel installation

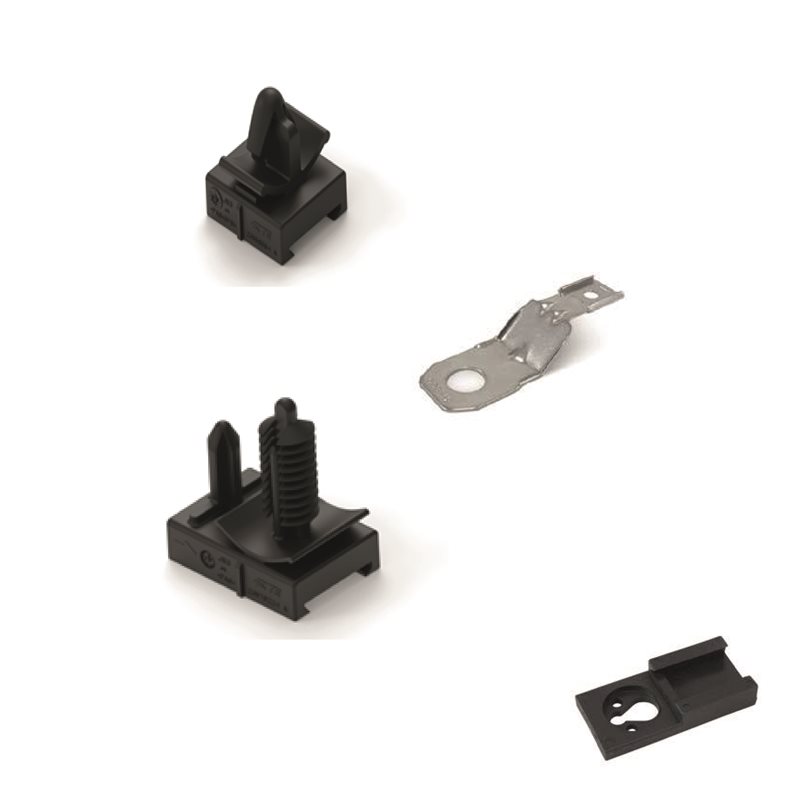

  • Uses robust and proven TE accessories like backshells and mounting clips

The Trusted & Reliable Choice

  • Utilises the high-performance DEUTSCH size 12, 16, and 20 common contact system
  • Achieves IP67, IP68, and IP6K9K sealing levels (with backshell)
  • Designed for extreme temperature (-40 °C to +125 °C) and engine-level vibrations
  • Terminal Position Assurance (TPA) confirms proper contact installation
  • Connector Position Assurance (CPA) confirms correct assembly and prevents accidental unlocking
 PRODUCT FEATURES
 Contact/Terminal System  DEUTSCH size 20, size 16, size 12
 20 Position  Size 20 (x16), size 16 (x4)
 26 Position  Size 20 (x18), size 16 (x4), size 12 (x4)
 48 Position  Size 20 (x40), size 16 (x8)
 Protection  IP67, IP68, and IP6K9K (with back shell)
 Operating Temperature  -40 °C to +125 °C
 Contact Operating Current  7.5 A/13 A/25 A (at +125 °C)
 Operating Voltage  12 V/24 V
 Material (Housing/CPA/TPA)  PBT
 Product Specifications  108-101662
 Application Specifications  114-32209

Part No.: TBA
