SEE THE UNSEEN, with the RESPA ADVISOR+ 2.0!
Meets Requirements for ISO 23875 Compliance
Threats that Impact Cab Air-Quality
Low Pressure
When HVAC performance is degraded by dirt in the system, cab pressure commonly falls below ambient pressure, and harmful particulate is drawn into the cab.
Dust
Long-term exposure to harmful respirable particulates such as silica, asbestos, and coal dust can cause irreversible, incurable diseases such as silicosis, mesothelioma, COPD, and more.
Elevated CO2 Levels
As the operator exhales in a small, enclosed space, carbon dioxide levels can rise quickly, especially with HVAC in recirculation mode. High levels can lead to accidents from fatigue, drowsiness, and sudden sleep.

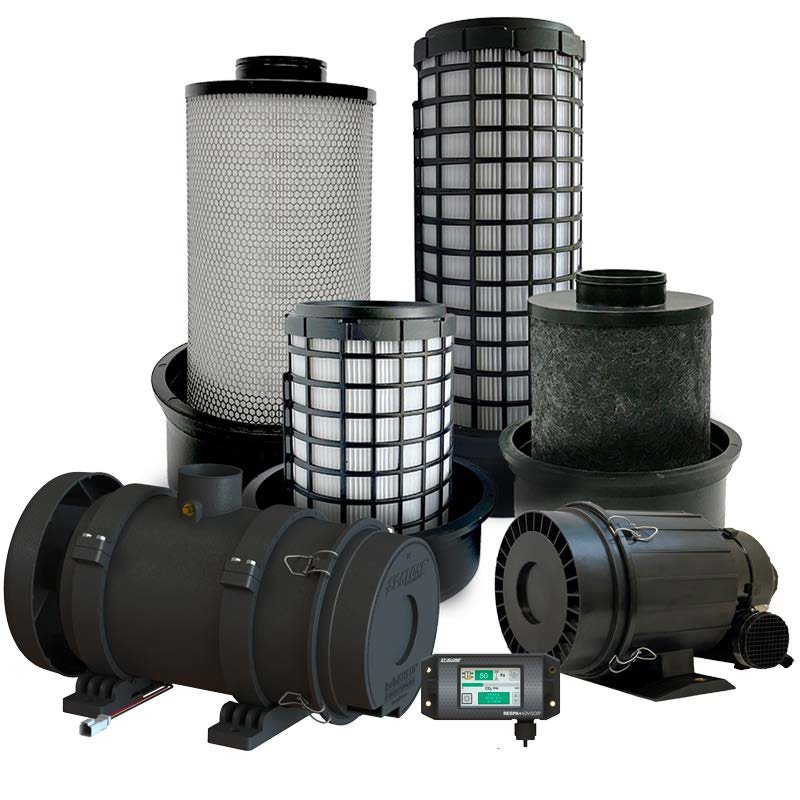

Control These Threats With a RESPA® Cab Air-Quality System
RESPA CF2: Fresh-air pre-cleaner/filter/ pressuriser
RESPA PFX or CFX2: High-efficiency recirculation filtration
RadialSHIELD® Filters: Interchangeable high-efficiency filter options
| SPECIFICATIONS |
| Voltage (12-24 VDC) |
Under-voltage protection @ 10 VDC
Over-voltage protection @ 30 VDC
Reverse-polarity protection. |
| Current Consumption |
~1 mA |
| Operating Temperature Rating |
-10 °C to +60 °C |
| Connectors |
Deutsch |
| Storage Temperature Rating |
-55 °C to +125 °C |
| Operating Pressure Range |
0 to 500 Pascal (Pa) |
| Operating CO2 Range |
0 to 5 000 ppm |
| Operating Pressure Range |
0 to 500 Pascal (Pa) |
| Pressure Display Resolution |
1 Pa (0.01 Inches-H2O) |
Weights and Dimensions

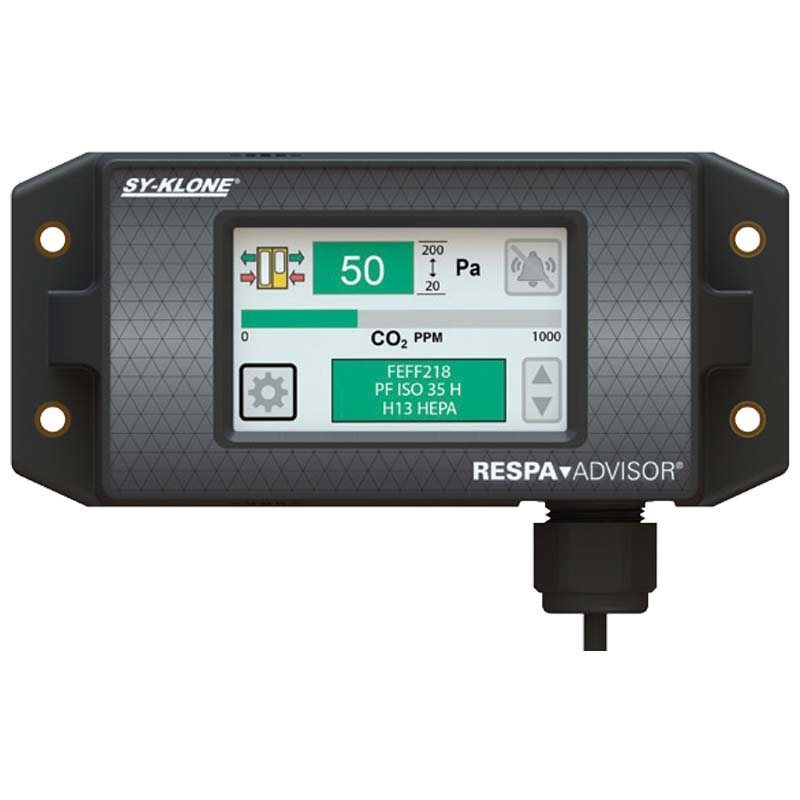

Monitor |
269 g
164.9 x 75.3 x 54.6 mm |
Weights and Dimensions

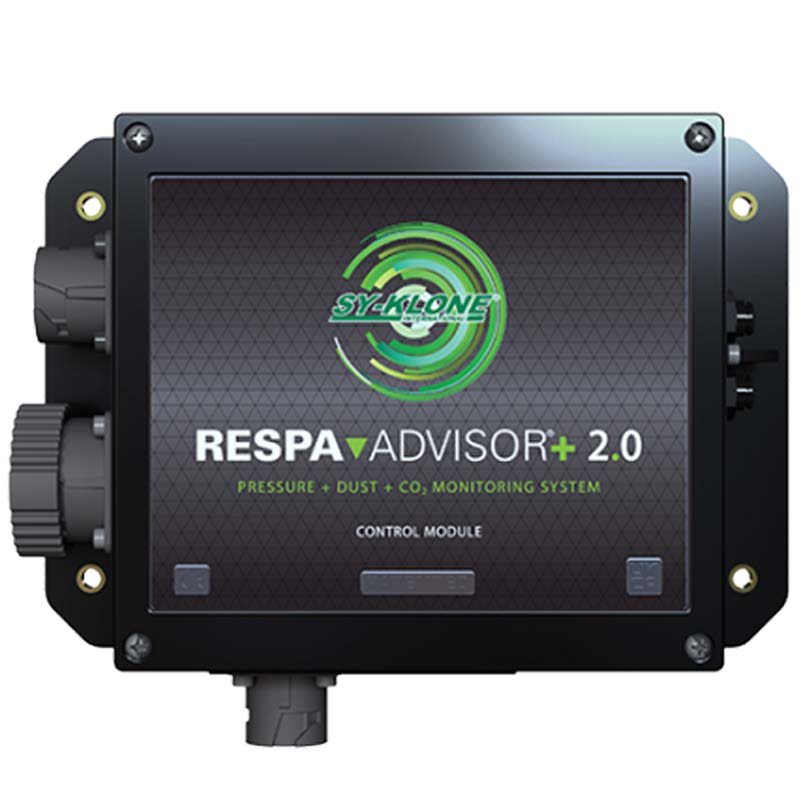

Control Module |
527 g
203.2 x 139.7 x 70.5 mm |
| Pressure Port Tubing |
Black Tube
Ø 3.2 mm x 2440 mm |
