INTELLIGENT ALCOHOL DETECTION & CLOUD-CONNECTED VEHICLE SAFETY SYSTEM
Drive Responsibly. Monitor Intelligently.
SoberDrive is a next-generation breathalyser system designed to enhance road safety through accurate alcohol detection and seamless data integration. Whether for corporate fleets, legal compliance, or community rehabilitation, SoberDrive provides a smart, reliable, and auditable solution for monitoring driver sobriety.
Smart Cloud Platform
- Automatic, secure cloud upload of test data
- Supports HTTP privatised protocols for data protection
- Integrates with third-party and government systems (JT/T 808-2019)
- Built-in data export function for easy reporting, analysis, and compliance
Robust, User-Friendly Design
- Lightweight (275 g) and durable (-10 °C to +50 °C)
- Bright, responsive capacitive touch screen
- Powered by Android 10
Optional Alcohol Interlock
- Prevents ignition if alcohol is detected
- Ideal for fleets and rehabilitation programs
Precision Fuel Cell Sensor
- Highly accurate alcohol readings from 0.00% to 4.00%
- ±0.05% margin of error
- Results in 5 seconds
Facial Recording for Traceability
- Integrated 5MP camera
- Captures user during each test
- Ensures full accountability, traceability, and an audit trail
Live GPS Tracking
- Dual mode, realtime GPS/Beidou positioning
- Suitable for fleet and mobile monitoring
With facial recording, realtime tracking, and a smart cloud dashboard, SoberDrive is the complete solution for preventing impaired driving, ensuring compliance, and building trust through transparent, auditable records.
| SPECIFICATIONS: SBD-306 |
| Power: |
Onboard power supply, wide voltage 9 - 36 VDC |
| Size: |
167 x 67 x 30 mm |
| Sensor: |
Fuel cell sensor |
| Calibration cycle: |
2 000 times or one year |
| Blowing time: |
5 seconds |
| Blowing flow rate: |
10 L/min |
| Measurement range: |
0-4.00% |
| Mount |
Single Bolt M10 |
| Error value: |
0.50% at ± 0.05% |
| Working temperature: |
-10 °C to +50 °C |
| Storage temperature: |
-20 °C to +65 °C
Alarm points and units can be set |
| Operating system: |
Android 10 |
| Camera: |
5 megapixel with built-in fill ligh |
| Face comparison: |
Supports local facial recognition algorithms and offline facial
recognition algorithms |
| Local information: |
GPS/Beidou dual mode positioning |
| Display screen: |
RGB 480 x 854 capacitive touch screen |
| Weight: |
Approximately 275 g |
| Communication: |
3G – WCDMA: B1/B8
4G – LTE FDD: B1/B3/B5/B7/B8/B20
4G – LTE TDD: B38/B40/B41
WiFi – 2402- 2482 MHz |
| Extended application: |
Optional alcohol interlock prevents vehicle use after
drinking, suitable for fleet control and rehabilitation programs. |

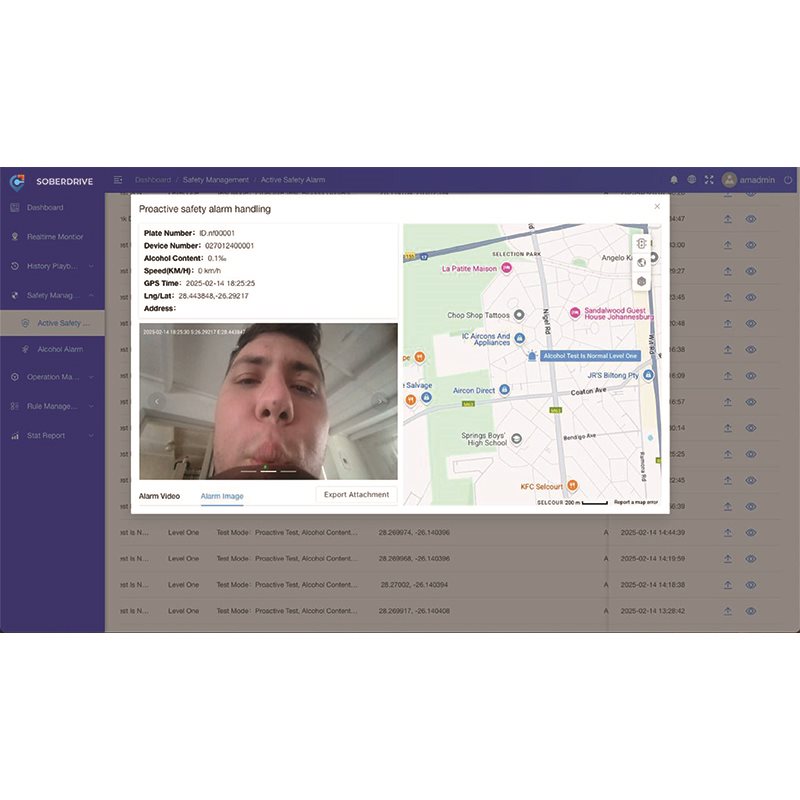

SoberDrive Portal
The SoberDrive portal provides secure, realtime access to critical driver safety data, including detailed breathalyser test
results, GPS locations, timestamps, and photos—all in one dashboard.
Ideal Applications
- Fleet and Logistics Management
- DUI Enforcement and Driver Monitoring
- Rehabilitation and Community Supervision
- Public Transport and Safety Compliance
What's Included
- SoberDrive Device
- 5 Breathable Mouthpieces
- Operating Instructions
- Protective Industrial Packaging
Part No.: T2200156294
OE No.: SBD-306
