Less Maintenance and Aging when the Battery is not in Use
DC Connector

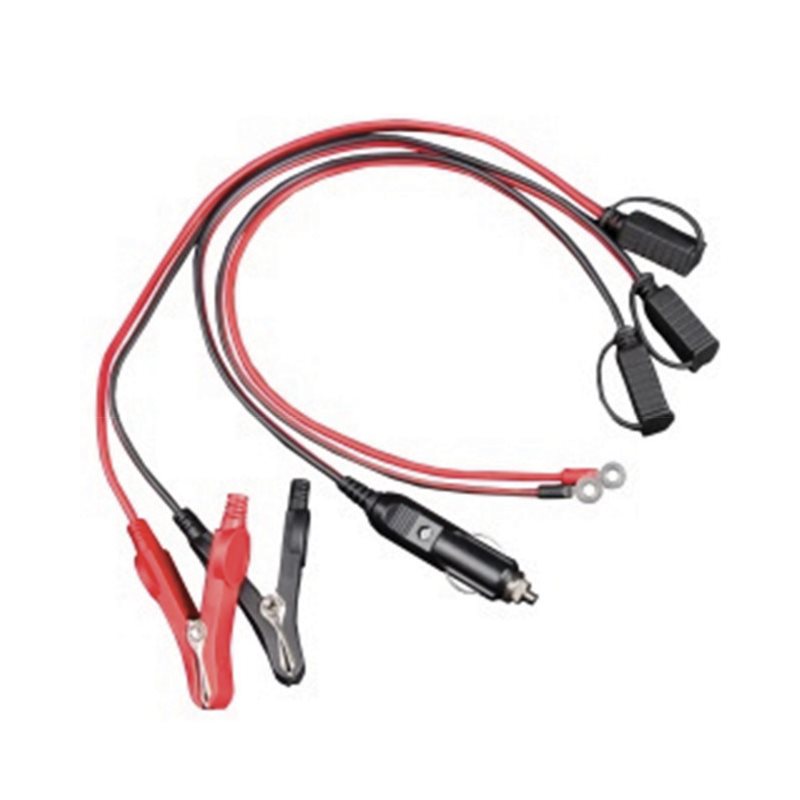

Depending on the application, clamps, eyelets or a cigarette plug (all included) can be connected to the charger.
The Storage Mode
The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode, float voltage is reduced to 13.2 V to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘equalise’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.
Protected against overheating and reverse polarity connection
The output current will reduce as temperature increases up to 40° C, but the charger will not fail.
Five LED’s for status and mode indication
When connected to the AC supply the STAND-BY LED will turn on. No voltage will be present at the output. After connection to a battery (battery voltage must exceed 8.5 V), a choice can be made out of three charge profiles with the MODE button:
1. Current limited to 0.8 A and 14.4 V absorption voltage.
The red LED <14 A/H will be on.
2. Current 4 A and 14.4 V absorption voltage.
The red LED >14 A/H will be on.
Application: Flooded, AGM or GEL batteries.
Ambient temperature 10° - 35° C.
3. Current 4 A and 14.7 V absorption voltage.
The red LED COLD will be on.
Application: Flooded, AGM or GEL batteries.
Ambient temperature below 10° C, or batteries requiring a
higher charge voltage (OPTIMA spiral cell batteries for example).
Until the battery is fully charged, the red LED CHARGE will be on.
After completion of the charge process, the red LED FULL will be on.
In case of reverse polarity connection, the red LED
! will be on.
If the red LED STANDBY remains on, even after pressing the MODE button, the connection to the battery is interrupted.
The charger always starts in STANDBY mode when connected to the AC supply.
Learn more about batteries and battery charging
To learn more about batteries and charging batteries, please refer to our book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com).
| Automotive IP65 Charger |
| Input voltage range |
200 - 265 V |
| Frequency |
50/60 Hz |
Charge voltage
'absorption' |
14.4 or 14.7 V |
| Charge voltage 'float' |
13.6 V |
| Charge voltage 'storage' |
13.2 V |
| Charge current |
4 A or 0.8 A |
Can be used as
power supply |
No [output relay] |
| Back current drain |
0.25 A/H/ month (0.3 mA) |
| Protection |
Reverse polarity, temperature |
| Operating temp. range |
-20° to +40° C
(full rated output up to 25° C) |
Humidity
(non condensing) |
Max 95% |
| Enclosure |
| Material & Colour |
PC Black |
| Battery-connection |
Black and red cable of 1.2 m
Connects to battery clamps,
M6 eyelets or 12 V plug (included) |
| 230 V AC-connection |
Cable of 1.5 m with CEE 7/7 plug |
| Protection category |
IP65 |
| Weight |
0.56 kg |
| Dimensions (h x w x d) |
42 x 61 x 185 mm |
| Standards |
| Safety |
EN 60335-1, EN 60335-2-29 |
| Emission |
EN 55014-1, EN 61000-6-3,
EN 61000-3-2 |
| Immunity |
EN 55014-2, EN 61000-6-1,
EN 61000-6-2, EN 61000-3-3 |
Part No.: T120016934
OE No.: BPC120480034R
