VEI Beacon Automatic Tool Change Management

BEACON AUTOMATIC TOOL CHANGE MANAGEMENT

Ideal solution for automatic tool change recognition on your machines for your weighing systems.

Easy and fast installation, excellent to speed up working times.

AUTOMATIC CALIBRATION OF EACH TOOL

Thanks to the Beacon, the VEI weighing system on your machine automatically recognises the change of work tool by matching its calibration settings. By doing so, the convenient solution of the quick coupling of your machine is combined with automatic recognition of the calibrations of your entire fleet. Switching from a bucket to a fork or a grab depending on your movement needs becomes an automatic tool change operation and therefore calibration of the weighing system without any need for manual selection.

Beacon clicks in to attach to its support. Easy to install in the machine tool.

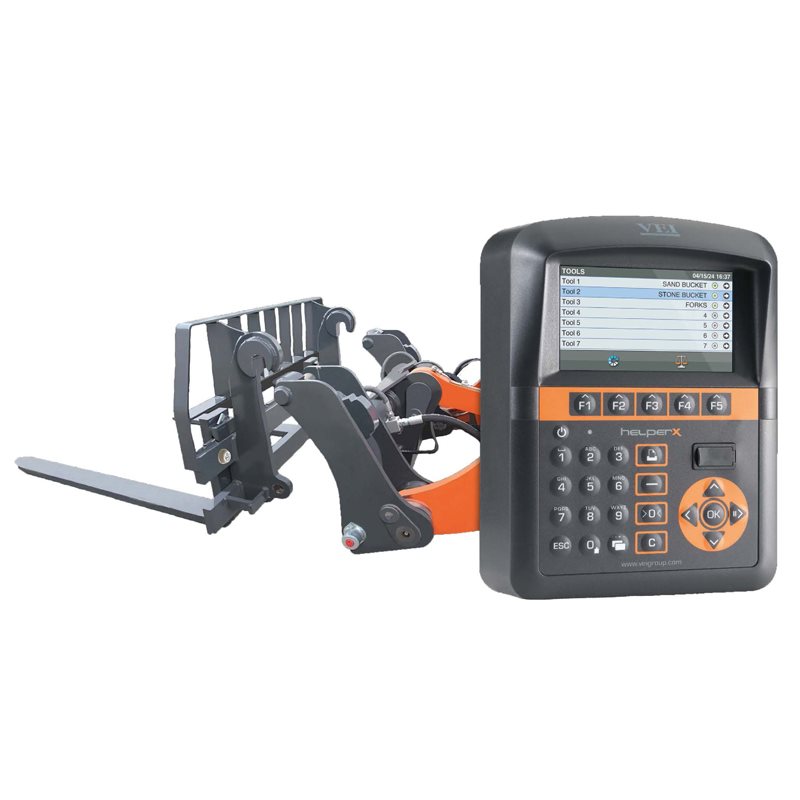

At each tool change of the operating machine the VEI weighing system automatically recognises and matches the respective calibration.


 SPECIFICATIONS
 Technology  2.4 GHz - Low energy Bluetooth 4.0/4.2
 Transmission Power  Configured to avoid Beacons interfering with one   another
 Transmission Distance  Configured to avoid Beacons interfering with one   another
 Programming  NFC
 Power Supply  3 VDC - Internal lithium battery
 Battery Duration  20 years, according to environmental conditions   and temperature
 Dimensions  Base Ø 57 mm – thickness 20 mm
 Weight  41 grams
 Material  Thermoplastic polyoxymethylene DELRIN (POM C)
 Protection Class  IP69K
 Working Temperature  From -40 °C to +85 °C
 Certification  Europe: CE / EN 301 489 & EN 55032V/EN 62368-1
 UK: UKCA
 USA: FCC: FCC PART 15
 Canada: ISED: RSS-247 / ICES-003
 Japan: TELEC
 RoHs/REACH  Yes

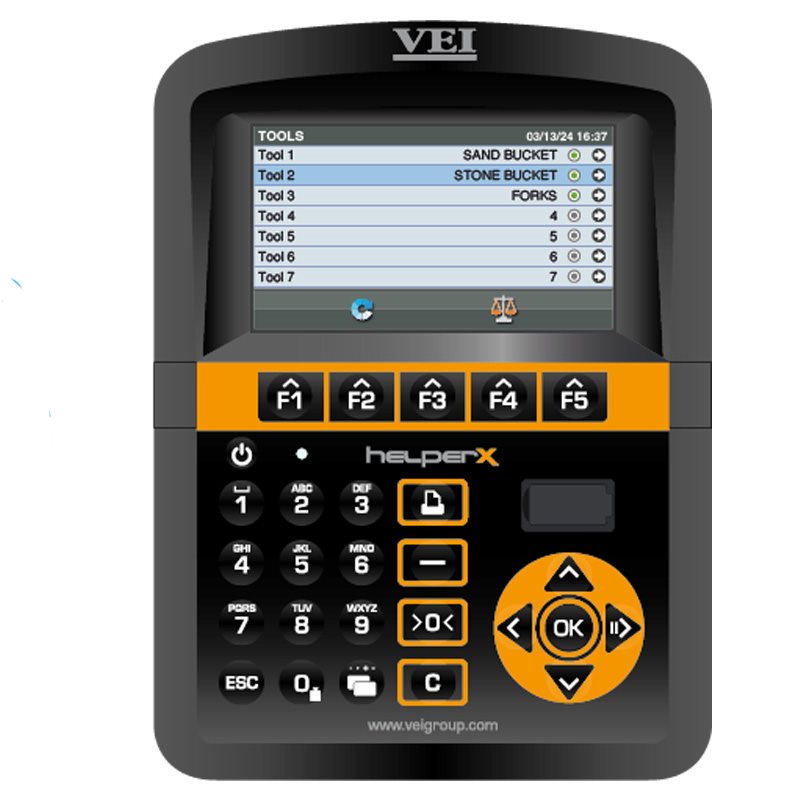

 Compatible Tool  HelperX HXL version

Part No.: TBA
