TE Connectivity Deutsch Commercial Vehicle Connectors

Time-tested, field-proven, sealed connectors meet the tough requirements of commercial transportation globally.


TE Connectivity's (TE's) rugged DEUTSCH connectors have been the smart choice for design engineers for over 40 years. DEUTSCH environmentally sealed electrical connectors are designed for harsh operating environments and critical applications where dirt, moisture, salt spray, and rough terrain can otherwise contaminate or damage electrical connections.

When you design electrical systems architectures using DEUTSCH connectors, you can get a full set of product solutions, including TE application tooling, field service tools, world-class engineering support, full technical documentation, and more from the industry leader, TE.

Our solutions adapt to virtually any harsh environment application,including:

  • Powertrain Controllers
  • ABS/Chassis & ESC Controls
  • Telematics & Infotainment Modules
  • Sensors, Displays, and Instrumentation
  • Wire-to-Wire
  • Unique Wire-to-Board
DEUTSCH COMMERCIAL VEHICLE CONNECTORS

The DEUTSCH connector portfolio offers many configurations, mounting styles, and material selections to meet your diverse application requirements. Since the DEUTSCH series uses the same common pin and socket contacts and tooling, it enables wire harness design commonality, simplifies installation, and facilitates easy field repair.

HD Products

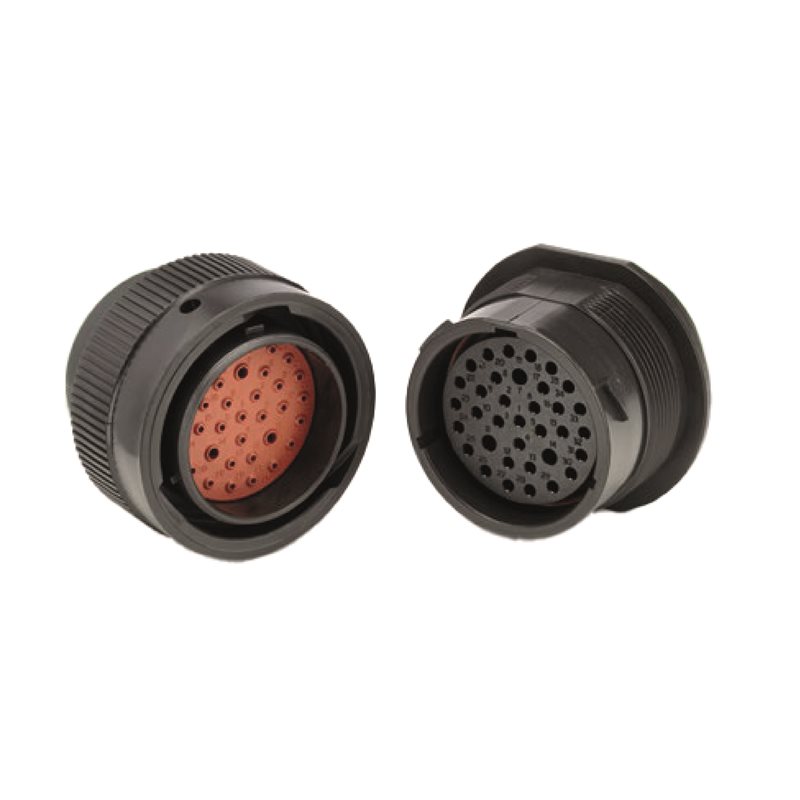

HD30 Connectors - Key Features:
  • Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
  • 4-22 AWG (13.00-0.35 mm2) wiring
  • 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 circuit arrangements
  • Sensors, Displays, and Instrumentation
  • In-line or panel mount
  • Circular aluminium housing
HDP20 Connectors - Key Features:
  • Accepts contact sizes 4 (100 amps), 8 (60 amps), 12 (25 amps), 16 (13 amps), and 20 (7.5 amps)
  • 4-22 AWG (25.00-0.35 mm2) wiring
  • 2, 6, 7, 8, 9, 14, 16, 18, 19, 20, 21, 23, 29, 31, 33, 35, and 47 circuit arrangements
  • In-line or panel mount
  • Circular, thermoplastic housing

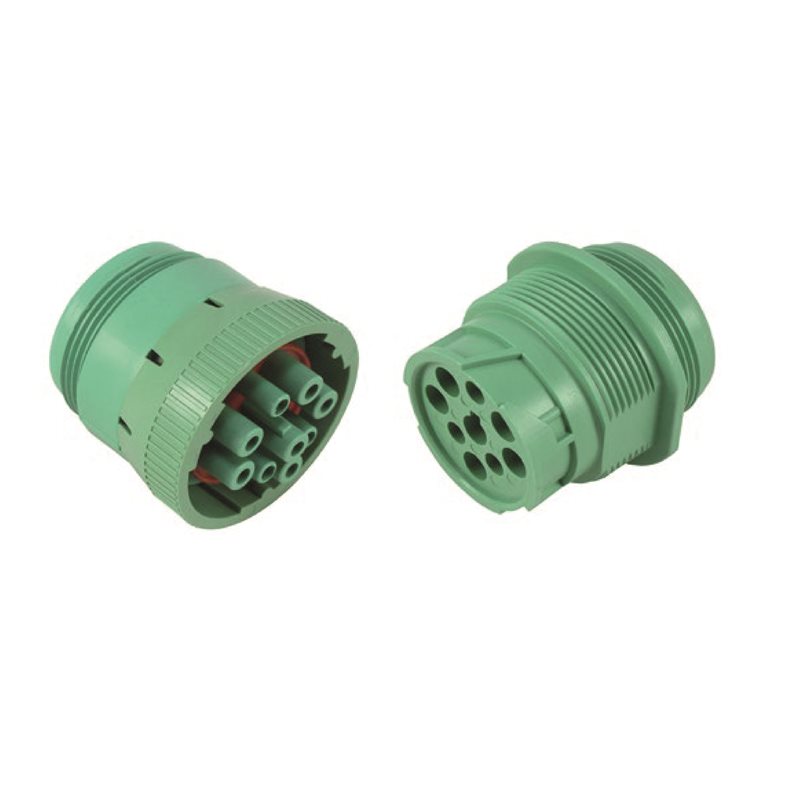

HD10 Connectors - Key Features:
  • Accepts contact sizes 4 (100 amps), 12 (25 amps), and 16 (13 amps)
  • 6-20 AWG (16.00-0.50 mm2) wiring
  • 3, 4, 5, 6, and 9 circuit arrangements
  • In-line or panel mount
  • Circular, thermoplastic housing
DT Products

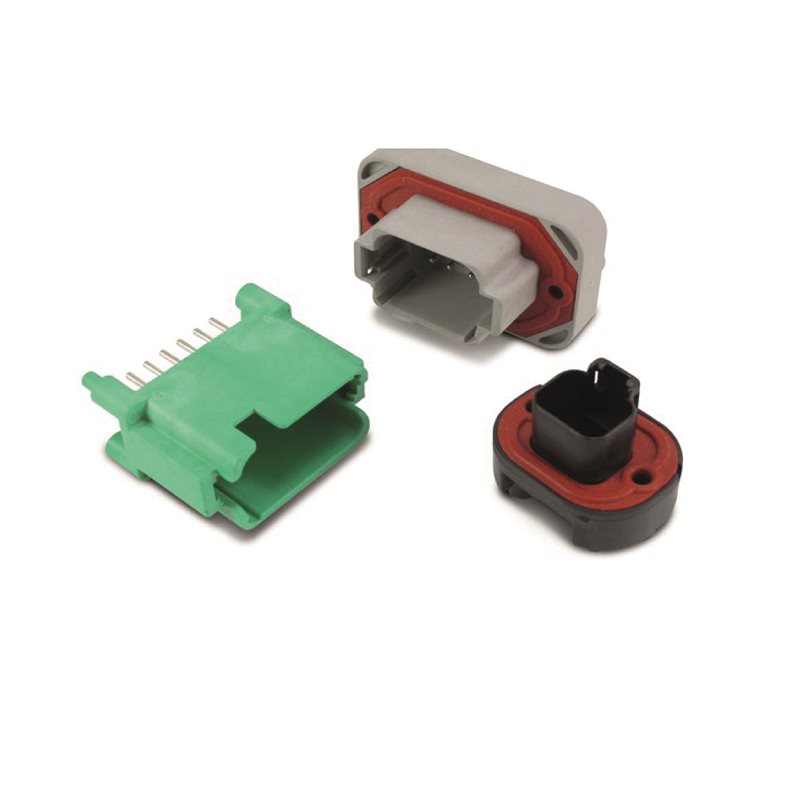

DT Connectors - Key Features:
  • Accepts contact size 16 (13-amp rated)
  • 4-20 AWG (2.50-0.50 mm2) wiring
  • 2, 3, 4, 6, 8, and 12 circuit-arrangements
  • In-line, flange, or PCB mount
DTM Connectors - Key Features:
  • Accepts contact size 20 (7.5-amp rated)
  • 14-22 AWG (2.50-0.35 mm2) wiring
  • 2, 3, 4, 6, 8, and 12 circuit arrangements
  • In-line, flange, or PCB mount
DTP Connectors - Key Features:
  • Accepts contact size 12 (25-amp rated)
  • 10-14 AWG (6.00-2.00 mm2) wiring
  • 2 and 4 circuit arrangements
  • In-line, flange, or PCB mount
