Heavy-Duty LED //

Nordic Work Light Scorpius Go 420

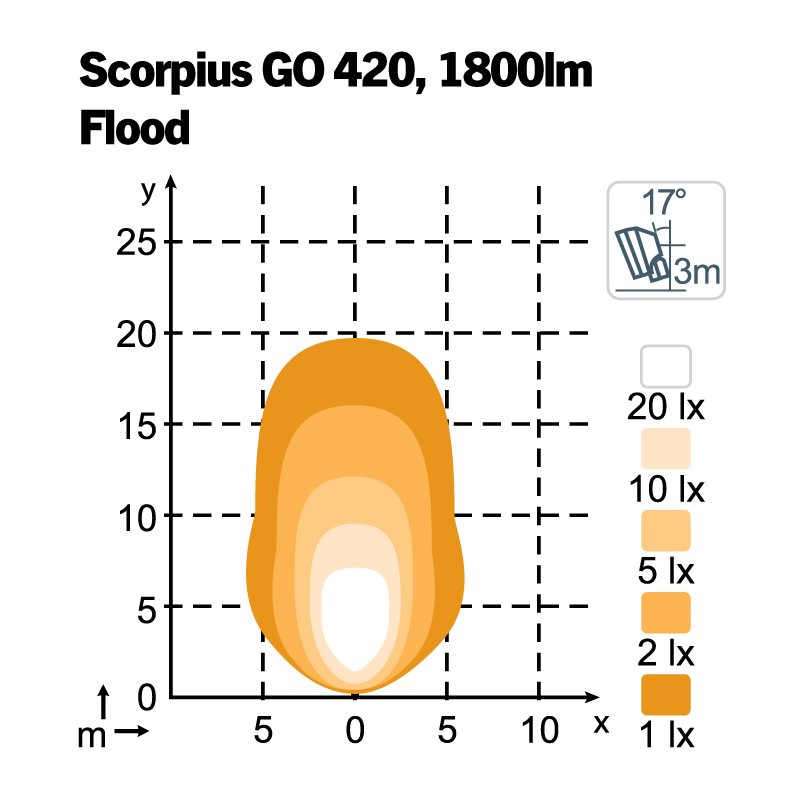

Our entry-level Scorpius GO is easy to use. It is lighter in weight than the original, the Scorpius PRO. In the Scorpius GO selection there are three light pattern options: flood, wide flood and reverse. Useful in construction, forestry, agriculture, and material handling, the Scorpius product family has a square form factor and pedestal mounting. The light produces zero emissions (EMC CISPR 25 class 5) and its light output is up to 1800 lumens.

Key Features:
  • Dimmable & cost-effective all-rounder
  • Operational lumens output: 1 800 Lumens
  • Pure performance in a compact design
  Technical Data
  Theoretical Lumens   2 800 Lumens
  Output:
  Operational Lumens   1 800 Lumens
  Output:
  Colour Temperature:   5 000 K
  Nominal Voltage DC:   12 - 24 V
  Input Voltage Range DC:   9 - 16 V, 18 - 32 V
  Power Consumption:   28 w
  Nominal Current at 24 V:   24 V = 1.00 A, 12 V = 1.80 A
  Electronics:   Isolated
  Connector:   Built-in Deutsch DT-2 (2-pin)
  Mount:   Single Bolt M8
  Shock:   60 G
  Vibration:   8 Grms 24 - 2 000 Hz
  Lens:   Grilamid┬« (registered trademark of EMS-GRIVORY)
  Body/Housing:   Aluminium
  Weight:   0.6 kg
  IP Rating:   IP68, IP6K9K
  Salt Spray Test:   ISO 9227 240H
  EMC:   CISPR 25 Class 5, EN12895, ISO
    13766, ISO 14982, ISO 7637-2
  Operating Temperatures:   -40┬░ C... +85┬░ C
    (Overheat protected)


Part No.: T988-203B
