Heavy-Duty LED //

Nordic LED Work Light N7301 Pictor

The NORDIC LIGHTS® Pictor N7301 is the most precise of our work lights, with a light output of 2 600 lumens. It is designed to be mounted on equipment booms to optimize lighting in a specific area. The design of the Pictor makes it the most durable boom light on the market. The Pictor N7301 is mainly used in the construction industry and is particularly suitable for excavators, telehandlers, and other equipment with a boom.

Key Features
  • Especially made for sides of booms
  • Operational lumens output: 2 600 lumens
  • Optimized illumination of a specific area
  Technical Data

  Theoretical Lumens Output:   4 100 Lumens
  Operational Lumens Output:   2 600 Lumens
  Colour Temperature:   5 700 K
  Nominal Voltage DC:   12 - 24 V
  Input Voltage Range DC:   9 - 32 V
  Power Consumption:   32 w
  Connector:   Built-in Deutsch DT-2

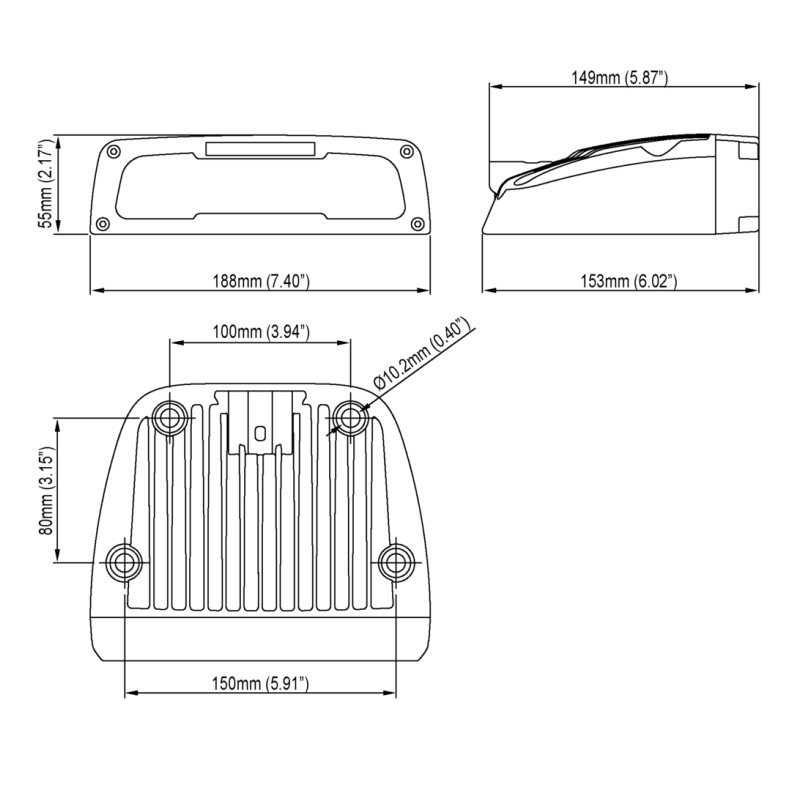

  Mount:   4 pcs DIN912 M8 + DIN125 washer
    4 pcs DIN912 M10 (not supplied)
  Shock:   60 G
  Vibration:   15.3 Grms 24 - 2 000 Hz
  Lens:   PC
  Body/Housing:   Aluminium
  Weight:   1.6 kg
  IP Rating:   IP68, IP6K9K, SAE J1455
  Salt Spray Test:   ISO 9227 240H
  Operating Temperatures:   -40° C... +85° C
    (Overheat protected)

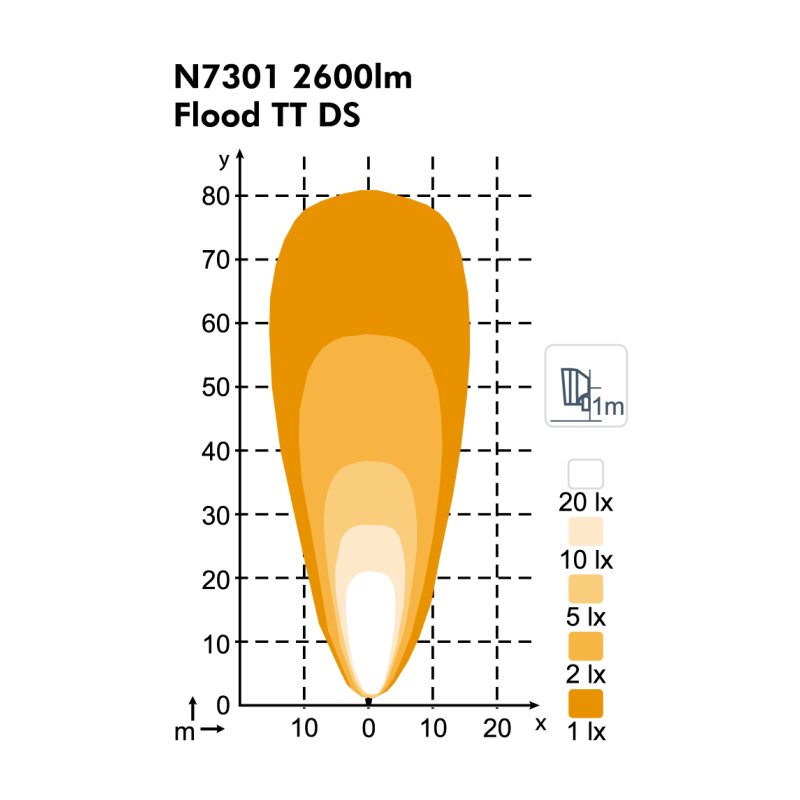

Flood Beam
Part No.: T987-102B
