Heavy-Duty Halogen //

Nordic N25 Halogen Work Lamp

NORDIC LIGHTS® N25 Halogen work light features a compact and rugged design. This heavy-duty work light is suitable for use in a multitude of applications. It is ideal for forklifts, mining, earth-moving, agricultural and construction equipment - wherever a compact, robust lighting source is required.

Features:
  • Compact
  • Rotate light unit for multiple fitting options
  • Salt Mist
  • Hardened Glass
  • Suitable & easy fit for various vehicles
  • Light weight
  Specifications
  Theoretical Lumens Output:   12 V   1 450 lm
    24 V   1 750 lm
  Operational Lumens Output:   12 V   1 100 lm
    24 V   1 400 lm
  Colour Temperature:     3 200 K
  Nominal/Input Voltage DC:   24 V   16-32 V
    12 V   8-16 V
  Bulb:     H3
  Power Consumption:   12 V   55 w
    24 V   65 w
    24 V   70 w
  Nominal Current at:   24 V   2.7 A
    12 V   4.6 A
  Mount:     Single Bolt M10
      Single Bolt M8
  Lens:     Hardened Glass
  Lens Colour:     Transparent
  Weight:     0.4 kg
  Salt Mist:     ISO 9227 240H
  Operating Temperatures:     -40°C … +85°C

  Range
  Part No.   T925-006N   T925-015B   T925-072B   T925-127B
  Model   N25 (no globe)   N25   N25   N25
  Volts   -   24 V   24 V   24 V
  Watts   -   65 w   70 w   70 w
  Connections   Amp Plug   -   Deutsch   -
  Light Pattern   Wide Flood   Wide Flood   Wide Flood   Hi Beam

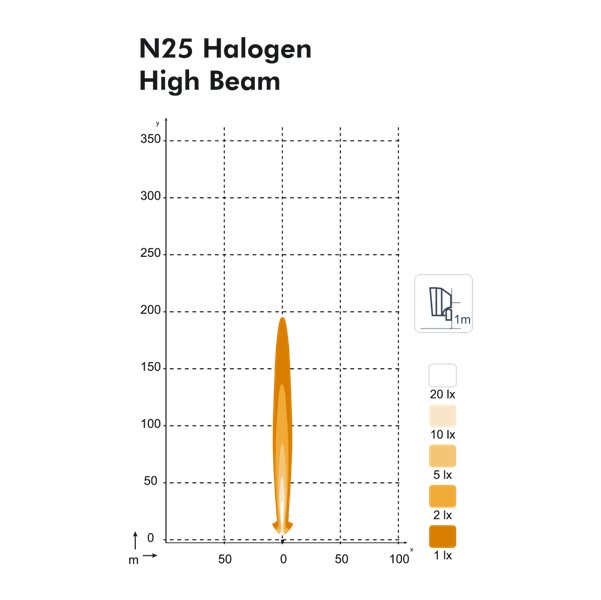

High Beam:
Part No.: T925-127B

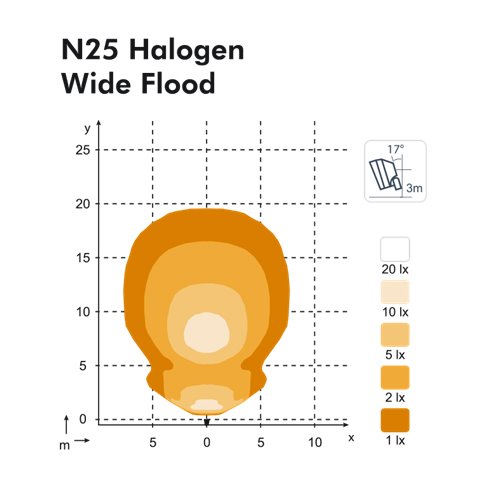

Wide Flood Beam
Part No.: T925-006N
Wide Flood Beam
Part No.: T925-015B
Wide Flood Beam
Part No.: T925-072B
