Heavy-Duty LED //

NordicLights Scorpius Blue 400 Crop Sprayer LED Light

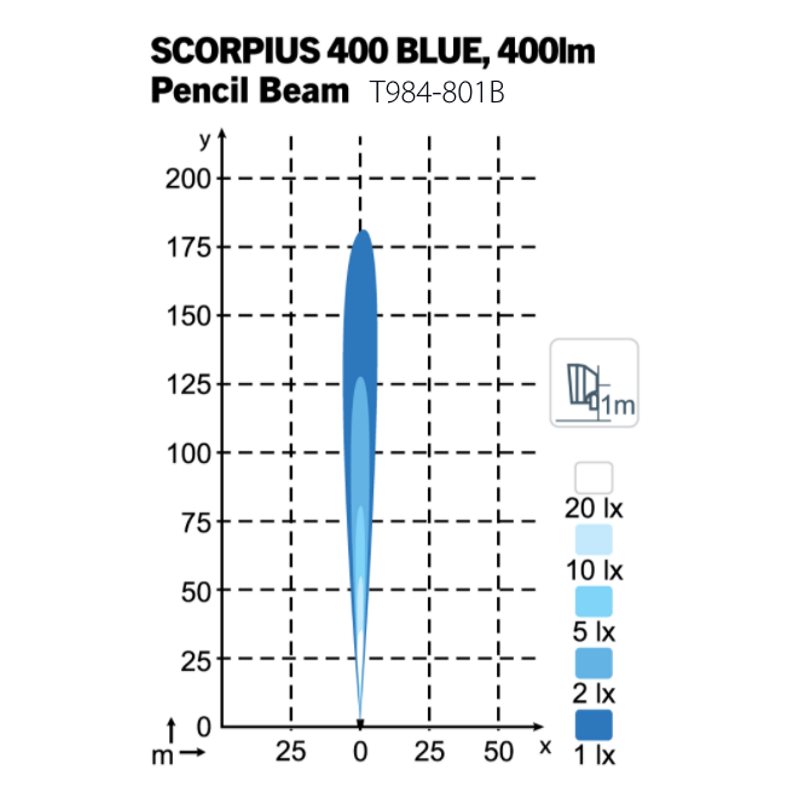

NORDICLIGHTS® Scorpius 400 Blue is a state-of-the-art blue-crop sprayer light and the latest addition to our successful Scorpius work light family. Originally developed for the mining industry, the standards for this work light are set high. Adapted to the agricultural industry, and designed specifically for crop sprayers, the Scorpius 400 Blue LED pencil beam illuminates the boom, the nozzles, and the spray pattern. It has an excellent luminous intensity of 30 000 candela, making it the best blue pencil beam you will find on the market.

The Scorpius 400 Blue work light offers a long lifetime and high operational safety with minimum maintenance. The mechanical, thermal, and corrosion resistance is excellent thanks to its Grilamid® lens and new strengthened aluminium housing. With a vibration resistance of up to 15.3 Grms and shock resistance of 60 G, it is made to withstand tough conditions.

Key Features:
  • Optimised illumination of boom and spray pattern
  • Light colour blue, 475 nm
  • Superior electromagnetic compatibility (CISPR 25 Class 5)
  • 5-Year Warranty
  Technical Data
  Light Color:   Blue, 475 nm
  Luminous intensity:   30 000 cd
  Nominal Voltage DC:   12 V, 24 V
  Input Voltage DC:   9 - 16 V, 18 - 32 V
  Power Consumption:   42 w
  Nominal Current at:   24 V=2.1 A, 12 V=4.2 A
  Connector:   Built-in Deutsch DT-2 (2-pin)
  Mount:   Single Bolt M10
  Shock:   60 G
  Lens:   Grilamid® (registered trademark of
  EMS-GRIVORY)
  Body/Housing:   Aluminium
  Weight:   1.1 kg
  IP Rating:   IP68, IP6K9K
  Salt Spray Test:   ISO 9227 240 H
  EMC:   CISPR 25 Class 5, ISO 13766,
  ISO 14982, ISO 7637-2,
  EN 61000-4-2"
  Operating Temperatures:   -40 °C ~ +85 °C (Overheat protected)"
  Electronics:   Isolated


Part No.: T984-801B
