Heavy-Duty LED //

Nordic LED Work Light Canis N2001


Delivers Strong Illumination Relative to its Size

The NORDIC LIGHTS® Canis N2001 is one of our smallest lights, with a single lamp, and a super wide light pattern. Produced with skidsteer loaders and telehandlers in mind, this light is suitable for mounting in tight spaces. It delivers strong illumination relative to its size. The Canis N2001 has a round form factor, pedestal mounting, and a light output of 1 000 lumens.

Key Features:
  • Ultra compact
  • Suitable for mounting in tight places
  • Operational lumens output: 1000 Lumens
  • 5-year warranty

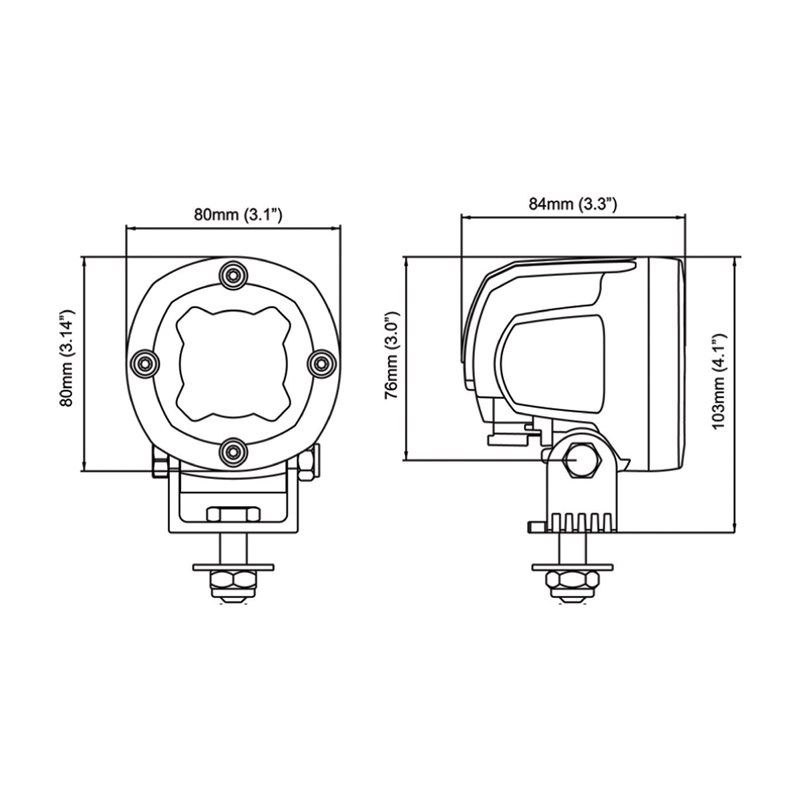

  • 80 x 80 x 84 mm
  Technical Data
  Theoretical Lumens
  Output:   1600 Lumens
  Operational Lumens
  Output:   1000 Lumens
  Colour Temperature:   5700 K
  Nominal Voltage DC:   12 - 48 V
  Input Voltage Range DC:   9 - 68 V
  Power Consumption:   13 w
  Nominal Current at 24 V:   48 V = 0.25 A, 24 V = 0.5 A,
    12 V = 1.0 A
  Connector:   Built-in Deutsch DT-2 (2-pin)
  Mount:   Single Bolt M10, Single Bolt M
  Shock:   60 G
  Vibration:   15.3 Grms 24 - 2 000 Hz
  Lens:   PC
  Body/Housing:   Aluminium
  Weight:   0.6 kg
  IP Rating:   IP68, IP6K9K, SAE J1455
  Salt Spray Test:   ISO 9227 240H
  Battery Leads:   25 mm x 2 m
  EMC:   CISPR 25 Class 3, EN 12895,
    ISO 13766, ISO 14982,
    ISO 7637-2+J98
  Operating Temperatures:   -40 °C... +85 °C
    (Overheat protected)

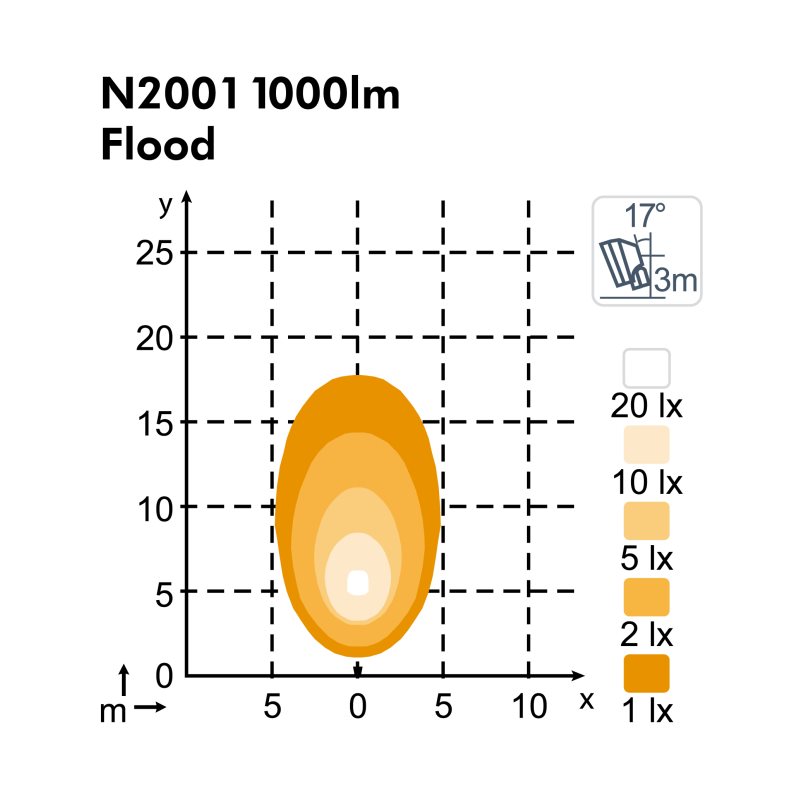

Flood Beam
Part No.: T980-102B

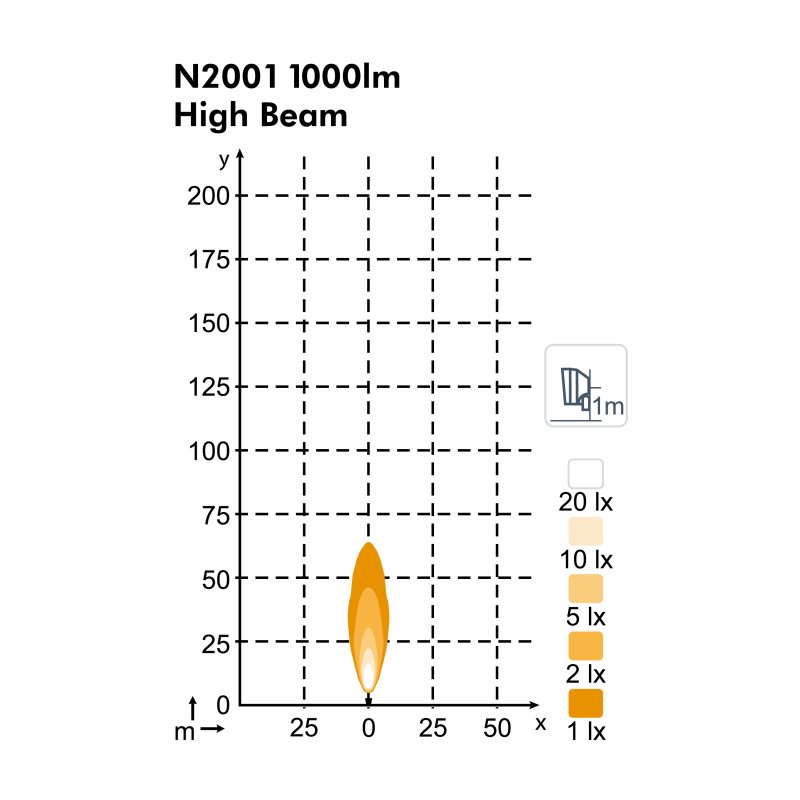

High Beam
Part No.: T980-103B

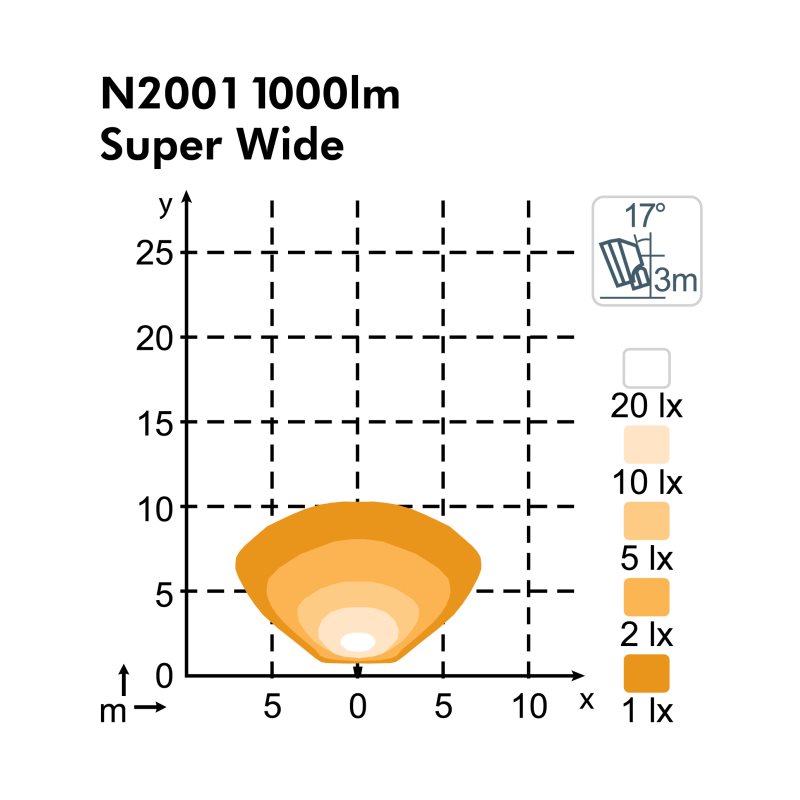

Super Wide Beam
Part No.: T980-104B

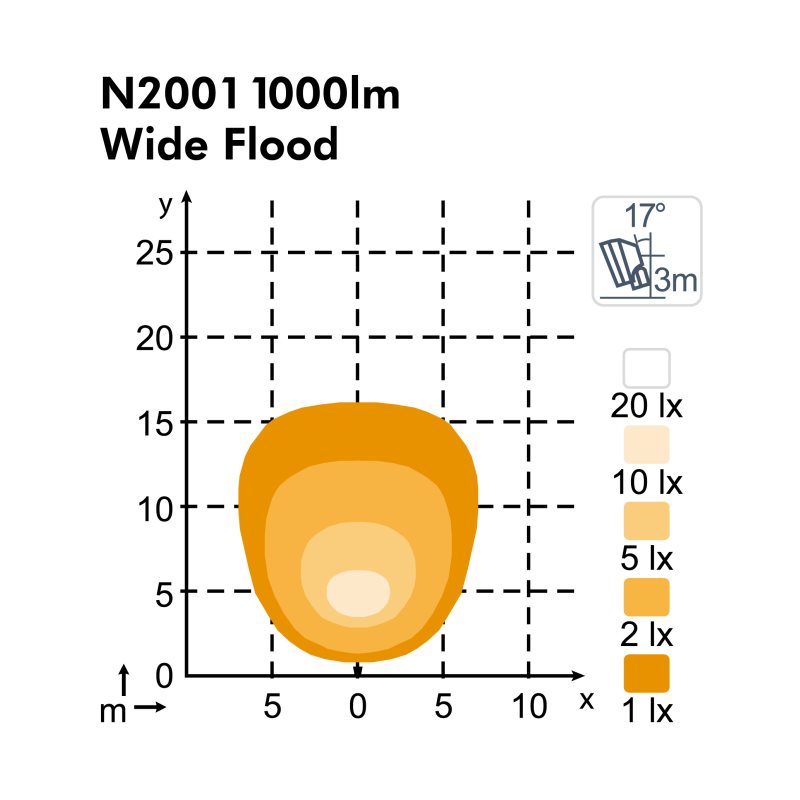

Wide Flood beam
Part No.: T980-101B
