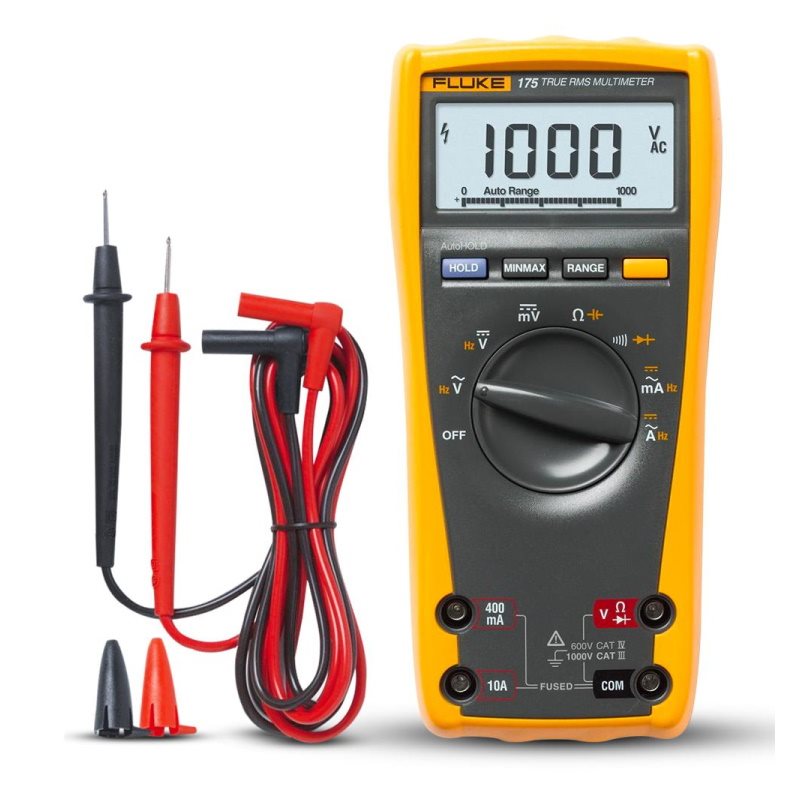

Fluke Digital Multimeter 175 Series

Fluke Digital Multimeter 175 Series
Key features:
  • Provides the baseline multimeter features you need for troubleshooting and repairing electrical and electronic systems
  • Delivers accurate true-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
  • Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording

The Fluke 175 True RMS Digital Multimeter delivers the baseline general purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events.

Safety rated for industrial use

All inputs on the 175 are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed. You can rely on the Fluke 175 for accurate, true-RMS readings through years of reliable service.

Need More Accuracy or Temperature Measurements?

If you need a higher degree of accuracy or contact temperature measurements click here see Fluke 177 and Fluke 179 True RMS Digital Multimeters

Other useful features:

  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Comes with a lifetime warranty
  • Allows closed-case calibration through front panel
  • Includes ergonomic case with integrated protective holster
  Specifications
    Accuracy¹   Max. resolution   Maximum
  Voltage DC   ±(0.15% + 2) (177)   0.1 mV   1 000 V
  Voltage AC   ±(1.0% + 3)   0.1 mV   1 000 V
  Current DC   ±(1.0% + 3)   0.01 mA   10A
  Current AC   ±(1.5% + 3)   0.01 mA   10A
  Resistance   ±(0.9% + 1)   0.1 Ω   50 MΩ
  Capacitance   ±(1.2% + 2)   1 nF   10 000 µF
  Frequency   ±(0.1% + 1)   0.01 Hz   100 kHz
  Environmental Specifications
  Operating temperature   -10°C to +50°C
  Storage temperature   -30°C to +60°C
  Humidity (without condensation)   0% – 90% (0°C – 35°C)
    0% – 70% (35°C – 50°C)
  Safety Specifications
  Overvoltage category   EN 61010–1 to 1000 V CAT III
    EN 61010–1 to 600 V CAT IV
  Agency approvals   UL, CSA, TÜV listed
  Mechanical and General Specifications
  Size   43 x 90 x 185 mm
  Weight   420 g
  Warranty   Lifetime
  Battery life   Alkaline ~200 hours typical, without backlight
1. Accuracies are best accuracies for each function

Part No.: T220013018
OE No.: 175
