The NORDIC LIGHTS® Scorpius PRO 415 Phenom Optics is an extremely useful work light delivering a three-in-one optical solution through our Phenom Optics solution (patent pending). With this work light mounted on your heavy-duty vehicle, you will have accent lighting with soft illumination directed upwards as a guide light for lifting or other operations and efficient task lighting to illuminate the work area both directly in front of and further from the vehicle. Most importantly, people and other vehicles working nearby will not be blinded thanks to the
glare-free zone it creates.
This LED work light is compact and lightweight, ideal for vehicles in material handling and construction. The Scorpius PRO 415 PH offers effective illumination with an operational lumen output of 1 500 lumens and excellent colour rendering in warm, natural hues. It has an asymmetrical wide fl ood light pattern and withstands vibrations of up to 8 Grms. Thanks to its glass lens and new strengthened aluminium housing, this work light has a high level of mechanical, thermal and corrosion resistance.
Key Features:
- Glare-free, will not blind people near the vehicle (PATENT PENDING WO2019073105)
- Maximum safety and high visibility with light focused on the desired areas
- Superior electromagnetic compatibility
- CISPR 25 Class 5
| Technical Data |
| Theoretical Lumens Output: |
1 950 Lumens |
| Operational Lumens Output: |
1 500 Lumens |
| Colour Temperature: |
5 700 K |
| Nominal Voltage DC: |
12 V, 24 V |
| Input Voltage Range DC: |
9 - 16 V, 18 - 32 V |
| Power Consumption: |
28 w |
| Nominal Current at 24 V: |
12 V = 2.4 A, 24 V = 1.2 A |
| Connector: |
Built-in Deutsch DT-2 (2-pin) |
| Mount: |
Single Bolt M8 |
| Shock: |
60 G |
| Vibration: |
8 Grms 24-2000 Hz |
| Lens: |
Glass |
| Body/Housing: |
Aluminium |
| Weight: |
0.6 kg |
| IP Rating: |
IP68, IP6K9K |
| Salt Spray Test: |
ISO 9227 240H |
| EMC: |
CISPR 25 Class 5, EN 14982-2, ISO |
| |
13766, EN 12895, ISO 11452-2, |
| |
EN 13309, ISO 7637-2 |
| Operating Temperatures: |
-40° C... +85° C (Overheat protected) |
| Electronics: |
Isolated |
| Warranty: |
5 Year |

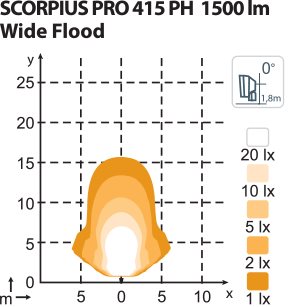

Wide Flood
Part No.: T989-101B
