Deutsch Ampseal 16 Connectors

Deutsch Ampseal 16 Connectors
  • Accepts contact size HDSF 16 (up to 13 amps)
  • 14-20 AWG (2.50 - 0.50 mm²)
  • 2, 3, 4, 6, 8, and 12 cavity arrangements
  • In-line mount
  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
  • Product specification documents: 108-2184, 114-13045, and 114-13065
  Connector Kits
  Part Number Cavity (No. Terminals)   Type   Colour
  776427-1   2   Plug   Black/Red
  776429-1   3   Plug   Black/Red
  776433-1   6   Plug   Black/Yellow
  1717672-1   2   Cap   Black/Grey
  1717673-1   3   Cap   Black/Red
  1717674-1   4   Cap   Black/Red
  1717675-1   6   Cap   Black/Red

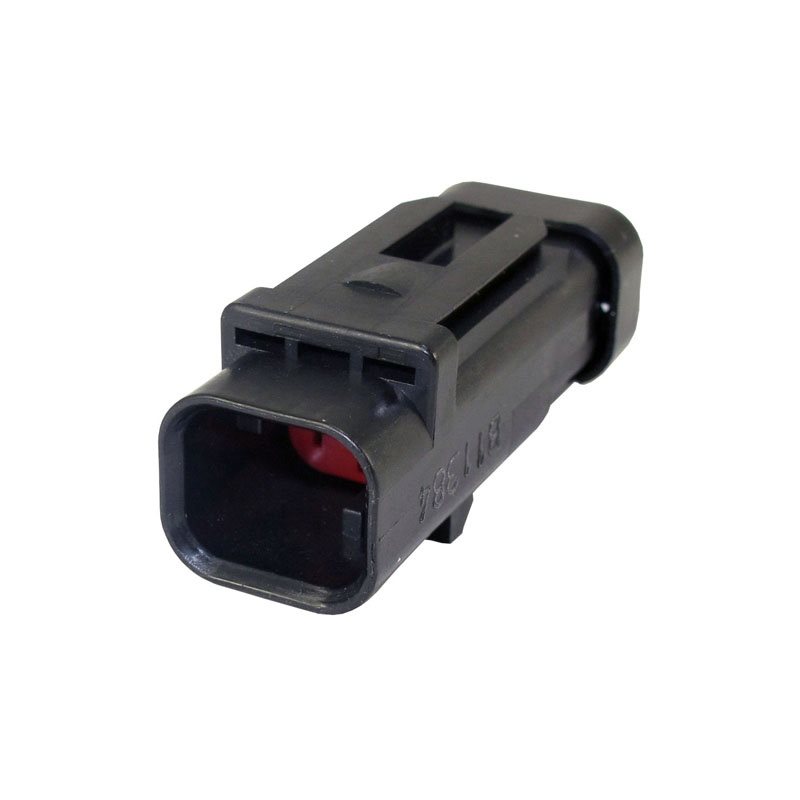

2-Way Cap
Part No.: T21001631696
OE No.: 1717672-1
Add to cart

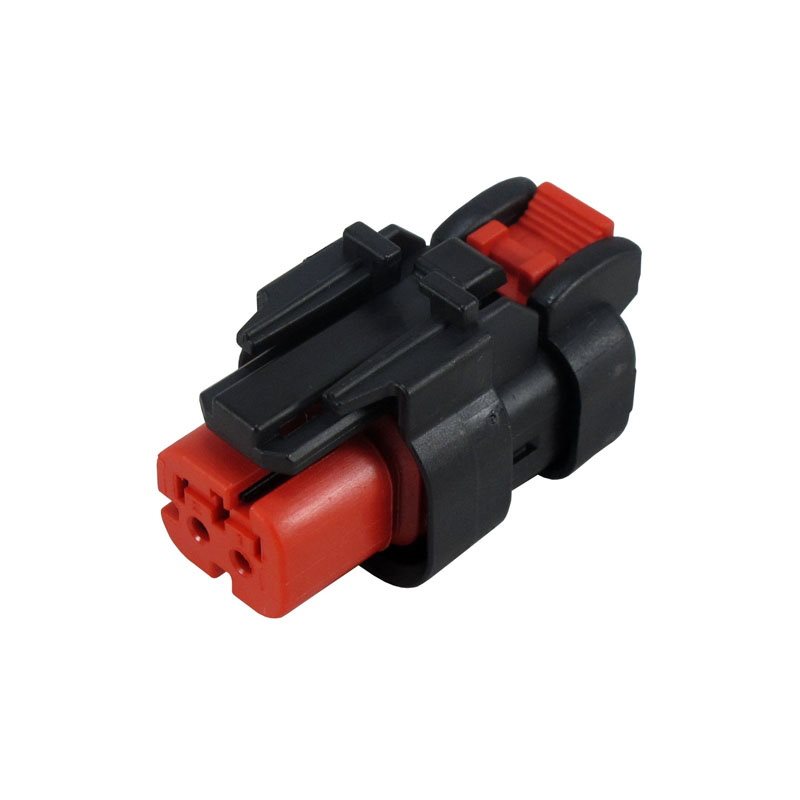

2-Way Plug
Part No.: T21001631693
OE No.: 776427-1
Add to cart

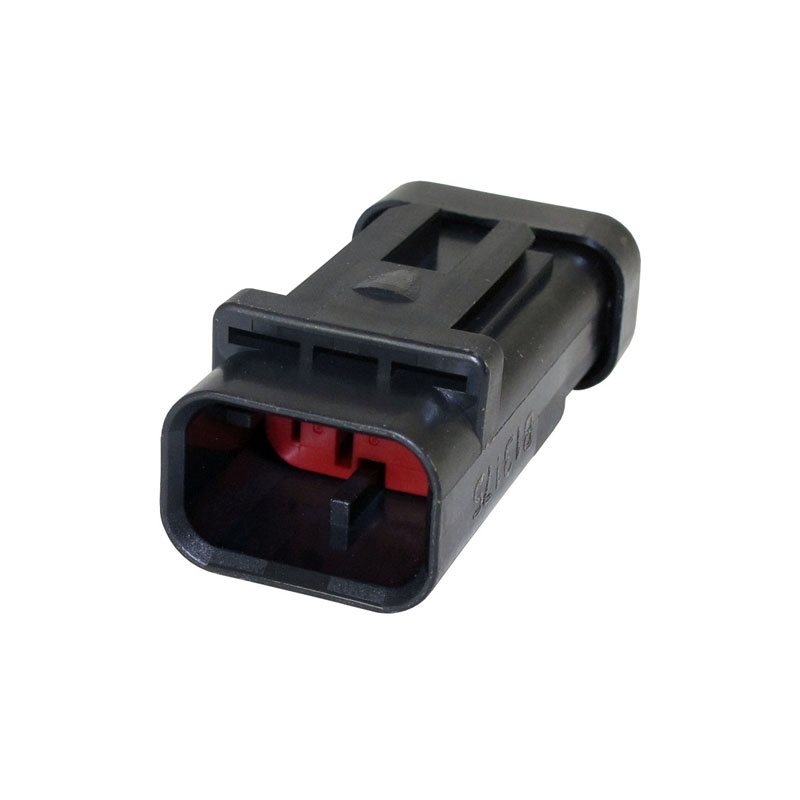

3-Way Cap
Part No.: T21001631697
OE No.: 1717673-1
Add to cart

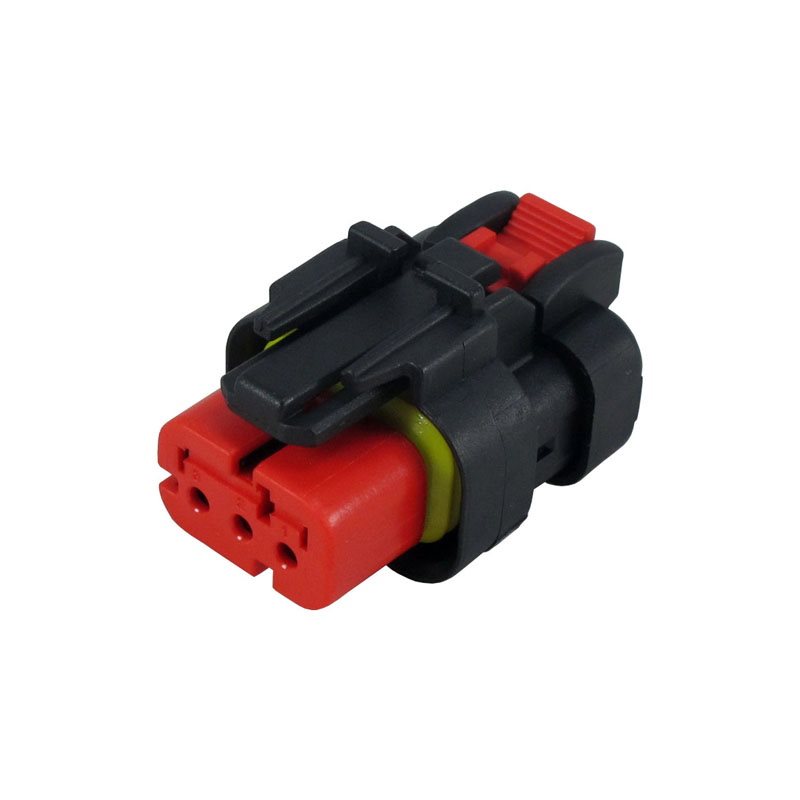

3-Way Plug
Part No.: T21001631694
OE No.: 776429-1
Add to cart

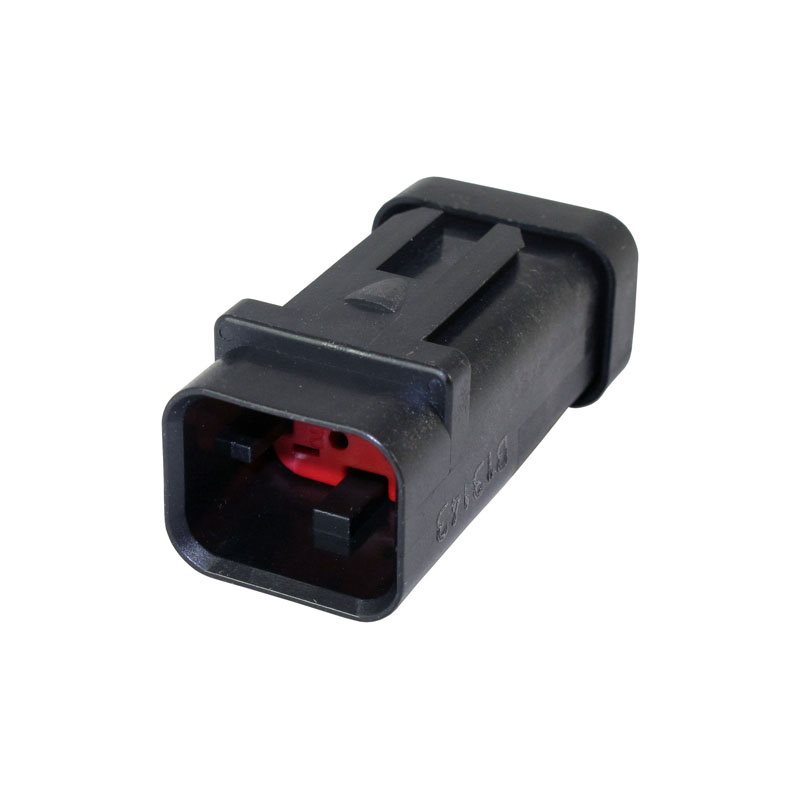

4-Way Cap
Part No.: T21001631698
OE No.: 1717674-1
Add to cart

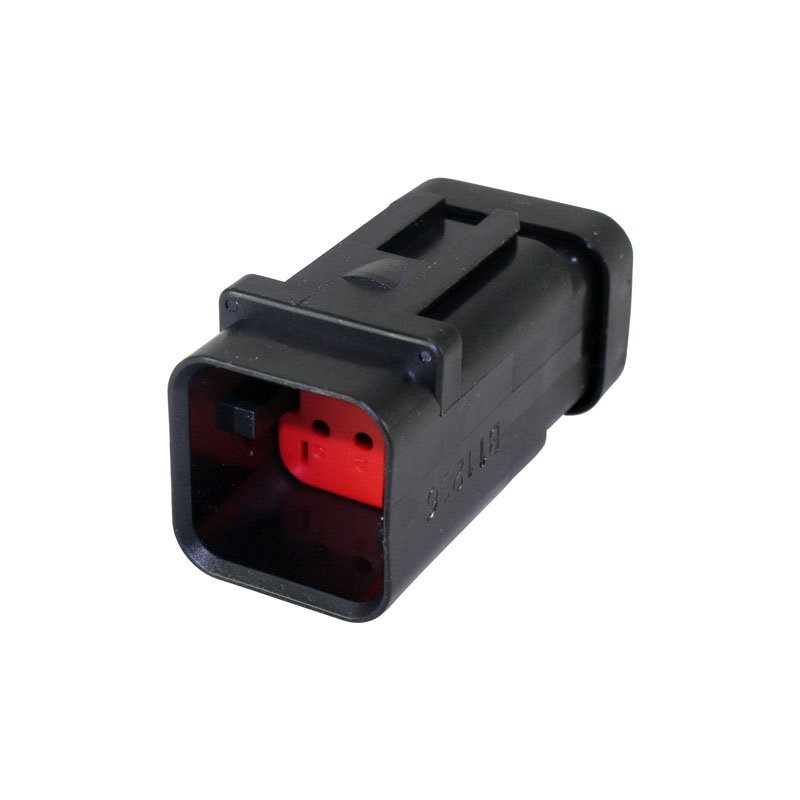

6-Way Cap
Part No.: T21001631699
OE No.: 1717675-1
Add to cart

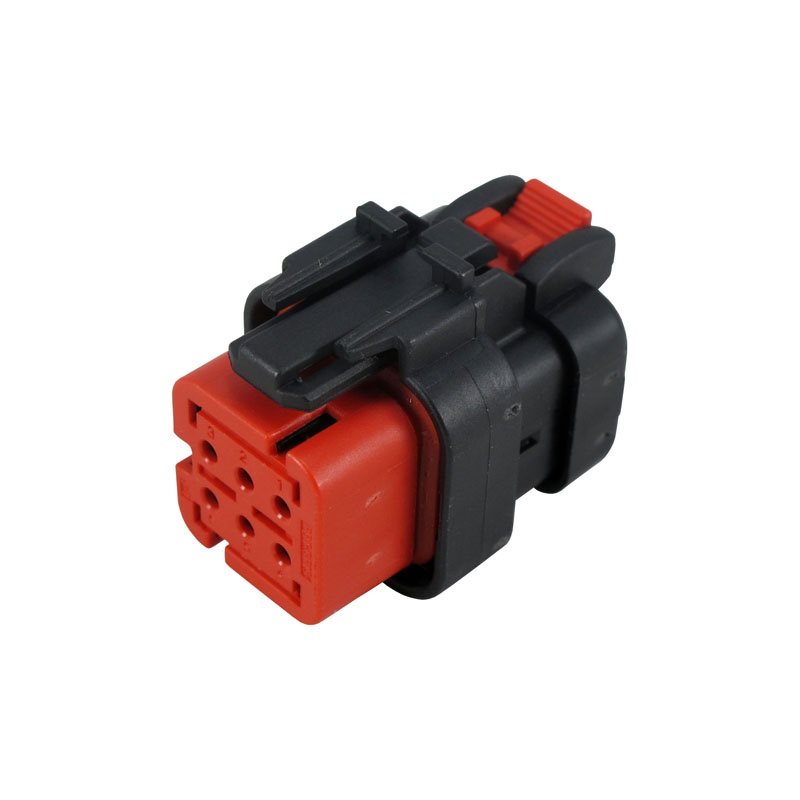

6-Way Plug
Part No.: T21001631695
OE No.: 776433-1
Add to cart
